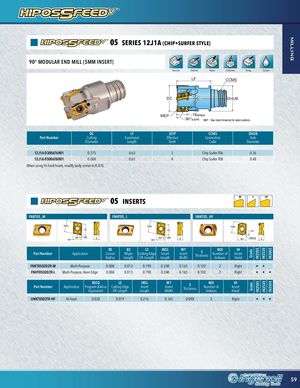

05 SERIES 12J1A
(CHIP•SURFER STYLE)
90° MODULAR END MILL (5MM INSERT)
Shoulder Channel Ramp Corkscrew Facing Coolant
LF CCMS
DC DHUB
WEP .19APMX 90°KAPR WEP - See insert drawing for wiper options.
| DC | LF | ZEFF | CCMS | DHUB | ||||||
| Part Number | Cutting | Functional | Effective | Connection | Hub | |||||
| Diameter | Length | Teeth | Code | Diameter | ||||||
| 12J1A-03006T6R01 | 0.375 | 0.63 | 3 | Chip Surfer T06 | 0.36 | |||||
| 12J1A-05006T8R01 | 0.500 | 0.65 | 4 | Chip Surfer T08 | 0.48 |
When using Hi-Feed Insert, modify body corner to R.070.
05 INSERTS M L HF
FNKT05_M FNHT05_L UNKT05_HF
INSL INSL INSL
| LE | LE | LE | |||
| BS | RE | S | BS | RE | REEQ |
W1 W1 S W1 S
| RE | BS | LE | INSL | W1 | S | NOI | IH | |||||||||||||
| Part Number | Application | Corner | Wiper | Cutting Edge | Insert | Insert | Thickness | Number of | Insert | |||||||||||
| Radius | Length | Eff. Length | Length | Width | Indexes | Hand | ||||||||||||||
| FNKT050202R-M | Multi-Purpose | 0.008 | 0.013 | 0.190 | 0.248 | 0.165 | 0.102 | 2 | Right | • • | ||||||||||
| FNHT050202R-L | Multi-Purpose, Keen Edge | 0.008 | 0.013 | 0.190 | 0.248 | 0.165 | 0.102 | 2 | Right | • • • | ||||||||||
| REEQ | LE | INSL | W1 | S | NOI | IH | ||||||||||||||
| Part Number | Application | Program Radius | Cutting Edge | Insert | Insert | Thickness | Number of | Insert | ||||||||||||
| Equivalent | Eff. Length | Length | Width | Indexes | Hand | |||||||||||||||
| UNKT0502TR-HF | Hi-Feed | 0.030 | 0.019 | 0.216 | 0.165 | 0.098 | 2 | Right | • • • |
