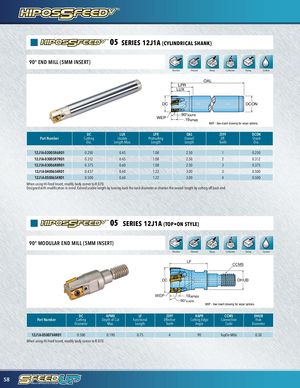

05 SERIES 12J1A
(CYLINDRICAL SHANK)
90° END MILL (5MM INSERT)
Shoulder Channel Ramp Corkscrew Facing Coolant
OAL LPR LUX DC DCON 90°KAPR WEP .19 APMX WEP - See insert drawing for wiper options.
| DC | LUX | LPR | OAL | ZEFF | DCON | |
| Part Number Cutting | Usable | Protruding | Overall | Eff. | Shank | |
| Dia. | Length Max. | Length | Length | Teeth | Dia. | |
| 12J1A-02005R6R01 | 0.250 | 0.45 | 1.08 | 2.50 | 1 | 0.250 |
| 12J1A-03005R7R01 | 0.312 | 0.45 | 1.08 | 2.50 | 2 | 0.312 |
| 12J1A-03006R8R01 | 0.375 | 0.60 | 1.08 | 2.50 | 3 | 0.375 |
| 12J1A-04006S4R01 | 0.437 | 0.60 | 1.22 | 3.00 | 3 | 0.500 |
| 12J1A-05006S4R01 | 0.500 | 0.60 | 1.22 | 3.00 | 4 | 0.500 |
When using Hi-Feed Insert, modify body corner to R.070. Designed with modification in mind. Extend usable length by turning back the neck diameter or shorten the overall length by cutting off back end.
05 SERIES 12J1A
(TOP•ON STYLE)
90° MODULAR END MILL (5MM INSERT)
Shoulder Channel Ramp Corkscrew Facing Coolant
LF CCMS DC DHUB WEP .19 APMX 90°KAPR WEP - See insert drawing for wiper options.
| DC | APMX | LF | ZEFF | KAPR | CCMS | DHUB | ||||||||
| Part Number | Cutting | Depth of Cut | Functional | Effective | Cutting Edge | Connection | Hub | |||||||
| Diameter | Max. | Length | Teeth | Angle | Code | Diameter | ||||||||
| 12J1A-05007X4R01 | 0.500 | 0.190 | 0.75 | 4 | 90 | TopOn M06 | 0.38 |
When using Hi-Feed Insert, modify body corner to R.070.
