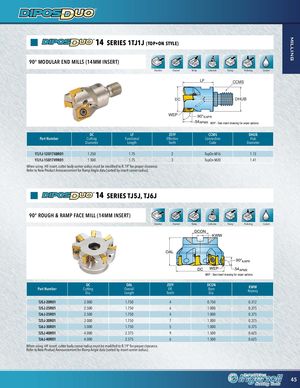

14 SERIES 1TJ1J (TOP•ON STYLE)


milling
90° MODULAR END MILLS (14MM INSERT)
Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant

LF CCMS

DC DHUB

WEP 90°KAPR
.54APMX WEP - See insert drawing for wiper options.

DC LF ZEFF CCMS DHUB
Part Number Cutting Functional Effective Connection Hub
Diameter Length Teeth Code Diameter
1TJ1J-12017X8R01 1.250 1.75 2 TopOn M16 1.13
1TJ1J-15017X9R01 1.500 1.75 3 TopOn M20 1.41
When using -HF insert, cutter body corner radius must be modified to R.19” for proper clearance.
Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius).


14 SERIES TJ5J, TJ6J
90° ROUGH & RAMP FACE MILL (14MM INSERT)
Shoulder Channel Ramp Corkscrew Facing Pocketing Coolant

DCON
KWW

OAL
90°KAPR
DC WEP .54APMX
WEP - See insert drawing for wiper options.

DC OAL ZEFF DCON KWW
Part Number Cutting Overall Eff. Bore Keyway
Dia. Length Teeth Dia.
TJ5J-20R01 2.000 1.750 4 0.750 0.312
TJ5J-25R01 2.500 1.750 6 1.000 0.375
TJ6J-25R01 2.500 1.750 4 1.000 0.375
TJ5J-30R01 3.000 1.750 7 1.000 0.375
TJ6J-30R01 3.000 1.750 5 1.000 0.375
TJ5J-40R01 4.000 2.375 9 1.500 0.625
TJ6J-40R01 4.000 2.375 6 1.500 0.625
When using -HF insert, cutter body corner radius must be modified to R.19” for proper clearance.
Refer to New Product Announcement for Ramp Angle data (sorted by insert corner radius).


45
