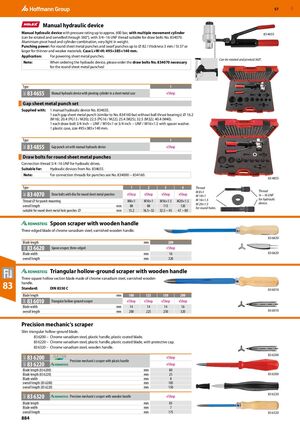

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 884

GBP 57 ​ Manual hydraulic device Manual hydraulic device with pressure rating up to approx. 600 bar, with multiple movement cylinder 83 4655 (can be rotated and swivelled through 360°), with 3/4−16 UNF thread suitable for draw bolts No. 834070. Aluminium pivot head and cylinder combination, very light in weight. Punching power: For round sheet metal punches and swarf punches up to ⌀ 82 / thickness 3 mm / St 37 or larger for thinner and weaker materials. Case L×W×H: 495×385×140 mm. Application: For powering sheet metal punches. Can be rotated and pivoted 360°. Note: When ordering the hydraulic device, please order the draw bolts No. 834070 necessary for the round sheet metal punches! Type 1 83 4655 Manual hydraulic device with pivoting cylinder in a sheet metal case eShop 86C Gap sheet metal punch set ​ Supplied with: 1 manual hydraulic device No. 834655. 1 each gap sheet metal punch (similar to No. 834160 but without ball thrust bearings) ⌀ 16.2 (M16); 20.4 (PG13 / M20); 22.5 (PG16 / M22); 25.4 (M25); 32.5 (M32); 40.4 (M40). 1 each draw bolt 3/4 inch − UNF / M10×1 or 3/4 inch − UNF / M16×1.5 with spacer washer. 1 plastic case, size 495×385×140 mm. Type 1 83 4855 Gap punch set with manual hydraulic device eShop 86C Draw bolts for round sheet metal punches ​ Connection thread 3/4 -16 UNF for hydraulic drives. Suitable for: Hydraulic devices from No. 834655. Note: For connection threads for punches see No. 834000 − 834160. 83 4855 Type 1 2 3 4 Thread M 8×1 Thread 83 4070 Draw bolts with disc for round sheet metal punches eShop eShop eShop eShop 86C M 10×1 ¾ – 16 UNF M 16×1.5 for hydraulic Thread ⌀ for punch mounting M8×1 M10×1 M16×1.5 M20×1.5 device. M 20×1.5 overall length mm 88 88 113 120 for round holes. suitable for round sheet metal hole punches ⌀ mm 15.2 16.5−32 32.5 − 45 47 − 80 ​ Spoon scraper with wooden handle Three-edged blade of chrome vanadium steel; varnished wooden handle. ​ 83 6620 Blade length mm 200 83 6620 86D Spoon scraper, three-edged eShop Blade width mm 16 ​ 83 6620 overall length mm 320 ​ Triangular hollow-ground scraper with wooden handle Three-square hollow section blade made of chrome vanadium steel, varnished wooden 83 handle. Standard: DIN 8350 C ​ 83 6010 Blade length mm 100 125 150 200 83 6010 86D Triangular hollow-ground scraper eShop eShop eShop eShop Blade width mm 14 14 14 16 overall length mm 200 225 250 320 ​ 83 6010 ​Precision mechanic‘s scraper Slim triangular hollow-ground blade. 83 6200 – Chrome vanadium steel, plastic handle, plastic coated blade. 83 6220 – Chrome vanadium steel, plastic handle, plastic coated blade, with protective cap. 83 6320 – Chrome vanadium steel, wooden handle. ​ 83 6200 83 6200 86D 86D eShop Precision mechanic’s scraper with plastic handle 83 6220 eShop Blade length (83 6200) mm 80 Blade length (83 6220) mm 25 ​ 83 6200 Blade width mm 8 overall length (83 6200) mm 185 overall length (83 6220) mm 150 ​ 83 6220 83 6320 86D Precision mechanic’s scraper with wooden handle eShop Blade length mm 85 Blade width mm 7 overall length mm 175 ​ 83 6320 884
