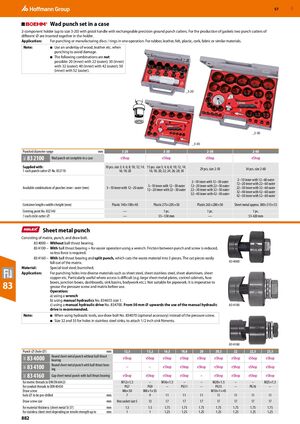

GBP 57 ​ Wad punch set in a case 2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder. Application: For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials. Note: ■ Use an underlay of wood, leather etc. when punching to avoid damage. ■ The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer). _3-20 _2-50 _3-30 Punched diameter range mm 3-20 3-30 2-50 2-60 83 2100 Wad punch set complete in a case eShop eShop eShop eShop 86C Supplied with: 10 pcs. size 3; 4; 6; 8; 10; 12; 14; 15 pcs. size 3; 4; 6; 8; 10; 12; 14; 29 pcs. size 2‑50 34 pcs. size 2‑60 1 each punch cutter ⌀ No. 832110 16; 18; 20 16; 18; 20; 22; 24; 26; 28; 30 2−10 inner with 12−60 outer 2−10 inner with 12−50 outer 12−20 inner with 22−60 outer 3−10 inner with 12−30 outer 12−20 inner with 22−50 outer Available combinations of punches inner : outer (mm) 3−10 inner with 12−20 outer 12−20 22−30 inner with 32−60 outer inner with 22−30 outer 22−30 inner with 32−50 outer 32−40 inner with 42−60 outer 32−40 inner with 42−50 outer 42−50 inner with 52−60 outer Container length×width×height (mm) Plastic 140×100×40 Plastic 275×205×50 Plastic 265×200×50 Sheet metal approx. 380×315×55 Centring point No. 832140 — 1 pc. 1 pc. 1 pc. 1 each circle cutter ⌀ — 55−330 mm — 55-420 mm ​ Sheet metal punch Consisting of matrix, punch, and draw bolt. 83 4000 – Without ball thrust bearing. 83 4100 – With ball thrust bearing = for easier operation using a wrench. Friction between punch and screw is reduced, so less force is required. 83 4160 – With ball thrust bearing and split punch, which cuts the waste material into 3 pieces. The cut pieces easily fall out of the matrix. 83 4000 Material: Special tool steel, burnished. Application: For punching holes into diverse materials such as sheet steel, sheet stainless steel, sheet aluminium, sheet copper etc. Particularly useful where access is difficult (e.g. large sheet metal plates, control cabinets, fuse 83 boxes, junction boxes, dashboards, sink basins, bodywork etc.). Not suitable for pipework. It is imperative to grease the pressure screw and matrix before use. Operation: a) using a wrench b) using manual hydraulics No. 834655 size 1. c) using a manual hydraulic drive No. 834700. From 50 mm ⌀ upwards the use of the manual hydraulic 83 4100 drive is recommended. Note: ■ When using hydraulic tools, use draw bolt No. 834070 (optional accessory) instead of the pressure screw. ■ Size 32 and 35 for holes in stainless steel sinks, to attach 1/2 inch sink fitments. 83 4160 Punch ⌀ (hole ⌀) mm 12,5 15,2 16,5 18,6 20 20,5 22 22,5 25,5 Round sheet metal punch without ball thrust 83 4000 eShop eShop eShop eShop eShop eShop eShop eShop eShop 86C bearing Round sheet metal punch with ball thrust bear‑ 83 4100 – – eShop eShop eShop eShop eShop eShop eShop 86C ing 83 4160 Gap sheet metal punch with ball thrust bearing eShop eShop eShop eShop – eShop eShop eShop eShop 86C for metric threads to DIN EN 60423 M12×1,5 – M16×1.5 – – M20×1.5 – – M25×1.5 for conduit threads to DIN 40430 PG7 PG9 – PG11 – PG13 – PG16 – Draw screw M6×30 M8×1×35 M10×1×45 hole ⌀ to be pre-drilled mm 7 9 11 11 11 11 11 11 11 Draw screw size mm Hex socket size 5 13 17 17 17 17 17 17 17 for material thickness (sheet metal St 37) mm 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 for stainless sheet steel depending on tensile strength up to mm 1 1 1.25 1.25 1.25 1.25 1.25 1.25 1.25 882
