Ручные и измерительные инструменты Hoffmann Group 2026 - страница 800

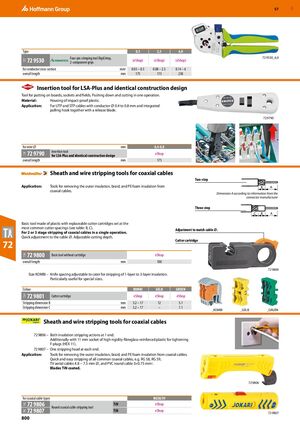

GBP 57 Type 0,5 2,5 6,0 Four-pin crimping tool DigiCrimp, 72 9530_6,0 72 9530 (eShop) (eShop) (eShop) 73T 2-component grips for conductor cross-section mm2 0.03 – 0.5 0.08 – 2.5 0.14 – 6 overall length mm 175 175 230 ​ Insertion tool for LSA-Plus and identical construction design Tool for putting on boards, sockets and fields. Pushing down and cutting in one operation. Material: Housing of impact-proof plastic. Application: For UTP and STP cables with conductor ⌀ 0.4 to 0.8 mm and integrated pulling hook together with a release blade. 72 9790 for wire ⌀ mm 0,4-0,8 Insertion tool 72 9790 eShop 73F for LSA-Plus and identical construction design overall length mm 175 ​ Sheath and wire stripping tools for coaxial cables Two-step Application: Tools for removing the outer insulation, braid, and PE foam insulation from B A coaxial cables. Dimension A according to information from the connector manufacturer Three-step C B A Basic tool made of plastic with replaceable cutter cartridges set at the most common cutter spacings (see table: B, C). Adjustment to match cable ⌀. For 2 or 3 stage stripping of coaxial cables in a single operation. Quick adjustment to the cable ⌀. Adjustable cutting depth. Cutter cartridge 72 72 9800 Basic tool without cartridge eShop 73H overall length mm 100 72 9800 Size KOMBI – Knife spacing adjustable to cater for stripping of 1-layer to 3-layer insulation. Particularly useful for special sizes. Colour KOMBI GELB GRUEN 72 9801 73H Cutter cartridge eShop eShop eShop Stripping dimension B mm 3.2 – 17 12 5.1 Stripping dimension C mm 3.2 – 17 – 7.1 _KOMBI _GELB _GRUEN ​ Sheath and wire stripping tools for coaxial cables 72 9806 – Both insulation stripping actions at 1 end. Additionally with 11 mm socket of high-rigidity fibreglass-reinforced plastic for tightening F-plugs (HEX 11). 72 9807 – One stripping head at each end. Application: Tools for removing the outer insulation, braid, and PE foam insulation from coaxial cables. Quick and easy stripping of all common coaxial cables, e.g. RG 58, RG 59, TV aerial cables 4.8 − 7.5 mm ⌀, and PVC round cable 3×0.75 mm2. Blades TiN coated. 72 9806 for coaxial cable types RG58/59 72 9806 TiN eShop 76C 76C Round coaxial cable stripping tool 72 9807 TiN eShop 72 9807 800
