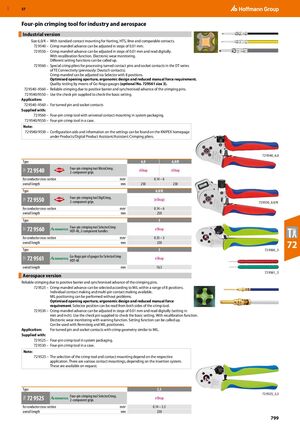

GBP 57 ​Four-pin crimping tool for industry and aerospace Industrial version ​ Size 6,0/K – With standard contact mounting for Harting, HTS, Ilme and comparable contacts. 72 9540 – Crimp mandrel advance can be adjusted in steps of 0.01 mm. 72 9550 – Crimp mandrel advance can be adjusted in steps of 0.01 mm and read digitally. With recalibration function. Electronic wear monitoring. Different setting functions can be called up. 72 9560 – Special crimp pliers for processing turned contact pins and socket contacts in the DT series of TE Connectivity (previously: Deutsch contacts). Crimp mandrel can be adjusted via Selector with 8 positions. Optimised opening aperture, ergonomic design and reduced manual force requirement. Quality testing by means of Go-Nogo gauges (optional No. 729561 size 3). 72 9540–9560 – Reliable crimping due to positive barrier and synchronised advance of the crimping pins. 72 9540/9550 – Use the check pin supplied to check the basic setting. Application: 72 9540–9560 – For turned pin and socket contacts Supplied with: 72 9560 – Four-pin crimp tool with universal contact mounting in system packaging. 72 9540/9550 – Four-pin crimp tool in a case. Note: 72 9540/9550 – Configuration aids and information on the settings can be found on the KNIPEX homepage under Products/Digital Product Assistant/Assistant: Crimping pliers. 72 9540_6,0 Type 6,0 6,0/K Four-pin crimping tool MicroCrimp, 72 9540 eShop eShop 73F 2-component grips for conductor cross-section mm2 0.14 – 6 overall length mm 250 230 Type 6,0/K Four-pin crimping tool DigiCrimp, 72 9550 (eShop) 73F 2-component grips 72 9550_6.0/K for conductor cross-section mm2 0.14 – 6 overall length mm 250 Type 3 Four-pin crimping tool SelectorCrimp 72 9560 eShop 73T HDT-48, 2-component handles for conductor cross-section mm2 0.35 – 3 overall length Type mm 230 3 72 9560_3 72 Go-Nogo pair of gauges for SelectorCrimp 72 9561 eShop 73T HDT-48 overall length mm 76.5 72 9561_3 Aerospace version ​ Reliable crimping due to positive barrier and synchronised advance of the crimping pins. 72 9525 – Crimp mandrel advance can be selected according to MIL within a range of 8 positions. Individual contact making and multi-pin contact making available. MIL positioning can be performed without problems. Optimised opening aperture, ergonomic design and reduced manual force requirement. Selector position can be read from both sides of the crimp tool. 72 9530 – Crimp mandrel advance can be adjusted in steps of 0.01 mm and read digitally (setting in mm and inch). Use the check pin supplied to check the basic setting. With recalibration function. Electronic wear monitoring with warning function. Setting function can be called up. Can be used with Rennsteig and MIL positioners. Application: For turned pin and socket contacts with crimp geometry similar to MIL. Supplied with: 72 9525 – Four-pin crimp tool in system packaging. 72 9530 – Four-pin crimp tool in a case. Note: 72 9525 – The selection of the crimp tool and contact mounting depend on the respective application. There are various contact mountings, depending on the insertion system. These are available on request. Type 3,3 72 9525_3,3 Four-pin crimping tool SelectorCrimp, 72 9525 70N eShop 2-component grips for conductor cross-section mm2 0.14 – 3.3 overall length mm 230 799
