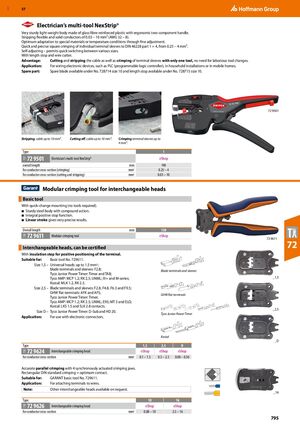

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 795

GBP 57 ​ Electrician’s multi-tool NexStrip® Very sturdy light-weight body made of glass fibre-reinforced plastic with ergonomic two-component handle. Stripping flexible and solid conductors of 0.03 – 10 mm² (AWG 32 – 8). Optimum adaptation to special materials or temperature conditions through fine adjustment. Quick and precise square crimping of individual terminal sleeves to DIN 46228 part 1 + 4, from 0.25 – 4 mm². Self-adjusting – permits quick switching between various sizes. With length stop and wire cutter. Advantage: Cutting and stripping the cable as well as crimping of terminal sleeves with only one tool, no need for laborious tool changes. Application: For wiring electronic devices, such as PLC (programmable logic controller), in household installations or in mobile homes. Spare part: Spare blade available under No. 728714 size 10 and length stop available under No. 728715 size 10. 72 9501 Stripping, cable up to 10 mm². Cutting off, cable up to 10 mm². Crimping terminal sleeves up to 4 mm². Type 1 72 9501 Electrician’s multi-tool NexStrip® eShop 73F overall length mm 190 for conductor cross-section (crimping) mm2 0.25 – 4 for conductor cross-section (cutting and stripping) mm2 0.03 – 10 ​ Modular crimping tool for interchangeable heads Basic tool ​ With quick-change mounting (no tools required). ■ Sturdy steel body with compound action. ■ Integral positive stop function. ■ Linear stroke gives very precise results. Overall length mm 150 72 9611 Modular crimping tool eShop 71B 72 9611 Interchangeable heads, can be certified ​ 72 With insulation stop for positive positioning of the terminal. Suitable for: Basic tool No. 729611. Size 1,5 – Universal heads: up to 1.5 mm2; blade terminals and sleeves: F2.8; Blade terminals and sleeves Tyco Junior Power Timer: Timer and TAB; Tyco AMP: MCP 1,2; RK 2,5; UNML; III+ and M-series; _1,5 Kostal: MLK 1.2, RK 2.5. Size 2,5 – Blade terminals and sleeves: F2.8, F4.8, F6.3 and F9.5; GHW flat terminals: AFK and AFS; GHW flat terminals Tyco Junior Power Timer: Timer; Tyco AMP: MCP 1.2; RK 2.5; UNML; E95; MT 3 and ELO; Kostal: LKS 1.5 and SLK 2.8 contacts. _2,5 Size D – Tyco Junior Power Timer: D-Sub and HD 20. Tyco Junior Power Timer Application: For use with electronic connectors. Kostal _D Type 1,5 2,5 D 72 9624 Interchangeable crimping head eShop eShop eShop 71B for conductor cross-section mm2 0.1 – 1.5 0.5 – 2.5 0.08 – 0.56 Accurate parallel crimping with 4 synchronously actuated crimping jaws. Rectangular DIN standard crimping = optimum contact. Suitable for: GARANT basic tool No. 729611. Application: For attaching terminals to wires. Note: Other interchangeable heads available on request. _16 Type 10 16 72 9626 Interchangeable crimping head eShop eShop 71B for conductor cross-section mm2 0.08 – 10 2.5 – 16 795
