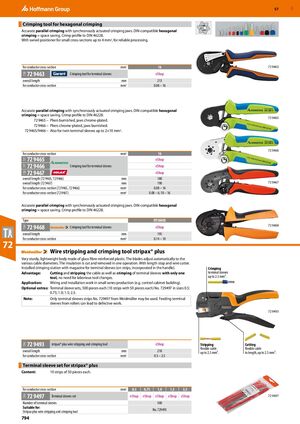

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 794

GBP 57 Crimping tool for hexagonal crimping ​ Accurate parallel crimping with synchronously actuated crimping jaws. DIN-compatible hexagonal crimping = space saving. Crimp profile to DIN 46228. With swivel positioner for small cross-sections up to 4 mm2, for reliable processing. for conductor cross-section mm2 16 ​ 72 9463 72 9463 Crimping tool for terminal sleeves eShop 71B overall length mm 213 for conductor cross-section mm2 0.08 – 16 Accurate parallel crimping with synchronously actuated crimping jaws. DIN-compatible hexagonal crimping = space saving. Crimp profile to DIN 46228. ​ 72 9465 72 9465 – Pliers burnished, jaws chrome-plated. 72 9466 – Pliers chrome-plated, jaws burnished. 72 9465/9466 – Also for twin terminal sleeves up to 2×10 mm2. ​ 72 9466 for conductor cross-section mm2 16 72 9465 eShop 72B 73T 73T 72 9466 Crimping tool for terminal sleeves eShop 72 9467 eShop overall length (72 9465, 72 9466) mm 180 overall length (72 9467) mm 190 ​ 72 9467 for conductor cross-section (72 9465, 72 9466) mm2 0.08 – 16 for conductor cross-section (72 9467) mm2 0.08 – 6; 10 – 16 Accurate parallel crimping with synchronously actuated crimping jaws. DIN-compatible hexagonal crimping = space saving. Crimp profile to DIN 46228. Type PZ10HEX ​ 72 9468 72 9468 73H Crimping tool for terminal sleeves eShop overall length mm 195 for conductor cross-section mm2 0.14 – 10 72 ​ Wire stripping and crimping tool stripax® plus Very sturdy, lightweight body made of glass fibre-reinforced plastic. The blades adjust automatically to the various cable diameters. The insulation is cut and removed in one operation. With length stop and wire cutter. Installed crimping station with magazine for terminal sleeves (on strips, incorporated in the handle). Crimping Advantage: Cutting and stripping the cable as well as crimping of terminal sleeves with only one terminal sleeves tool, no need for laborious tool changes. up to 2.5 mm². Application: Wiring and installation work in small series production (e.g. control cabinet building). Optional extras: Terminal sleeve sets, 500 pieces each (10 strips with 50 pieces each) No. 729497 in sizes 0.5; 0.75; 1.0; 1.5; 2.5. Note: Only terminal sleeves strips No. 729497 from Weidmüller may be used. Feeding terminal sleeves from rollers can lead to defective work. ​ 72 9493 72 9493 stripax® plus wire stripping and crimping tool eShop 73H Stripping Cutting flexible cable flexible cable overall length mm 210 up to 2.5 mm². to length, up to 2.5 mm². for conductor cross-section mm2 0.5 – 2.5 Terminal sleeve set for stripax® plus ​ Content: 10 strips of 50 pieces each. for conductor cross-section mm2 0,5 0,75 1,0 1,5 2,5 72 9497 72 9497 73H Terminal sleeves set eShop eShop eShop eShop eShop ​ Number of terminal sleeves 500 Suitable for: No. 729493 Stripax plus wire stripping and crimping tool 794
