Ручные и измерительные инструменты Hoffmann Group 2026 - страница 785

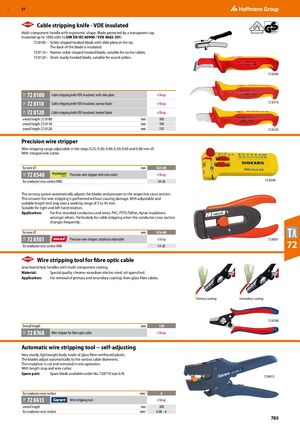

GBP 57 ​ Cable stripping knife - VDE insulated Multi-component handle with ergonomic shape. Blade protected by a transparent cap. Insulated up to 1000 volts to DIN EN IEC 60900 / VDE 0682-201. 72 8100 – Sickle-shaped hooked blade with slide plate at the tip. The back of the blade is insulated. 72 8110 – Narrow sickle-shaped hooked blade, suitable for sector cables. 72 8120 – Short sturdy hooked blade, suitable for round cables. 72 8100 72 8100 Cable stripping knife VDE insulated, with slide plate eShop 73F 72 8110 Cable stripping knife VDE insulated, narrow blade eShop 72 8110 73F 72 8120 Cable stripping knife VDE insulated, hooked blade eShop 73F overall length (72 8100) mm 180 overall length (72 8110) mm 190 overall length (72 8120) mm 170 72 8120 ​Precision wire stripper Wire stripping range adjustable in the steps 0.25; 0.30; 0.40; 0.50; 0.60 and 0.80 mm ⌀. With integral wire cutter. for wire ⌀ mm 025-08 72 8540 Precision wire stripper with wire cutter eShop 76C for conductor cross section AWG 30-20 72 8540 The sensing system automatically adjusts the blades and pressure to the respective cross-section. This ensures the wire stripping is performed without causing damage. With adjustable and scalable length end stop over a working range of 5 to 45 mm. Suitable for right and left hand rotation. Application: For fine stranded conductors and wires, PVC, PTFE/Teflon, Kynar insulations amongst others. Particularly for cable stripping when the conductor cross section changes frequently. for wire ⌀ mm 016-08 72 8501 Precision wire stripper, steplessly adjustable eShop 72B 72 8501 for conductor cross section AWG 34-20 72 ​ Wire stripping tool for fibre optic cable Jaws burnished, handles with multi-component coating. Material: Special quality chrome-vanadium electro-steel, oil-quenched. Application: For removal of primary and secondary coatings from glass fibre cables. Primary coating Secondary coating 72 8768 Overall length mm 130 72 8768 Wire stripper for fibre optic cable eShop 73F ​Automatic wire stripping tool − self-adjusting Very sturdy, lightweight body made of glass fibre-reinforced plastic. The blades adjust automatically to the various cable diameters. The insulation is cut and removed in one operation. With length stop and wire cutter. Spare part: Spare blade available under No. 728710 size 6/N. 72 8613 for conductor cross-section mm2 6 72 8613 Wire stripping tool eShop 71B overall length mm 200 for conductor cross-section mm2 0.08 – 6 785
