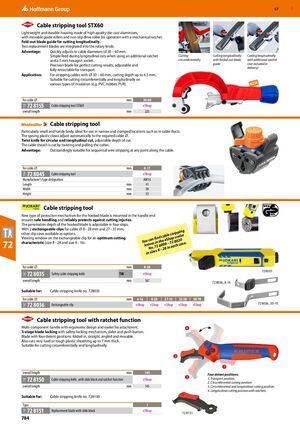

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 784

GBP 57 ​ Cable stripping tool STX60 Lightweight and durable housing made of high-quality die-cast aluminium, with movable guide rollers and non-slip drive roller for operation with a mechanical ratchet. Fold-out blade guide for cutting longitudinally. Two replacement blades are integrated into the rotary knob. Advantage: Quickly adjusts to cable diameters of 30 – 60 mm. Simple feed during longitudinal cuts when using an additional ratchet Cutting Cutting longitudinally Cutting longitudinally and a 5 mm hexagon socket. circumferentially with folded-out blade with additional ratchet Precision blade for perfect cutting results, adjustable and guide (not included in delivery) fully retractable for transport. Application: For stripping cables with ⌀ 30 – 60 mm, cutting depth up to 6.5 mm. Suitable for cutting circumferentially and longitudinally on various types of insulation (e.g. PVC, rubber, PUR). NEW for cable ⌀ mm 30-60 72 8155 Cable stripping tool STX60 eShop 73F overall length mm 225 ​ Cable stripping tool Particularly small and handy body, ideal for use in narrow and cramped locations such as in cable ducts. The sprung plastic claws adjust automatically to the required cable ⌀. Twist knife for circular and longitudinal cut, adjustable depth of cut. The cable sheath is cut by twisting and pulling the cutter. Advantage: Outstandingly suitable for sequential wire stripping at any point along the cable. for cable ⌀ mm 6-17 72 8045 73H Cable stripping tool eShop Manufacturer‘s type designation AM16 Length mm 41 Width mm 58 Height mm 53 ​ Cable stripping tool New type of protection mechanism for the hooked blade is mounted in the handle end ensures safe handling and reliably protects against cutting injuries. The penetration depth of the hooked blade is adjustable in four steps. With 2 exchangeable clips for cable ⌀ 8 - 28 mm and 27 - 35 mm, ing other clip sizes available as options. tripp Viewing window on the exchangeable clip for an optimum cutting n d cable s p under an fi Sho You c es in the e – 72 8030 se. 72 characteristic (size 8 - 28 and size 4 - 16). kniv . 72 8000 n each ca No 8 – 28 i es in siz for cable ⌀ mm 8-28 72 8035 72 8035 Safety cable stripping knife TiN eShop 76C overall length mm 167 72 8036_4-16 Suitable for: Cable stripping knife no. 728035 for cable ⌀ mm 4-16 8-28 27-35 35-50 50-70 72 8036 Exchangeable clip eShop eShop eShop eShop eShop 72 8036_50-70 76C ​ Cable stripping tool with ratchet function Multi-component handle with ergonomic design and eyelet for attachment. 3-stage blade locking with safety-locking mechanism, slider and push-button. Blade with four detent positions: folded in, straight, angled and movable. Also cuts very hard or tough plastic sheathing up to 7 mm thick. Suitable for cutting circumferentially and longitudinally. overall length mm 145 Four detent positions: 72 8150 Cable stripping knife, with slide block and ratchet function eShop 1. Transport position. 73F 2. Circumferential cutting position. overall length mm 145 3. Circumferential and longitudinal cutting position. 4. Longitudinal cutting position with ratchets. Suitable for: Cable stripping knife no. 728150 Type 1 72 8151 Replacement blade with slide block eShop 73F 72 8151 784
