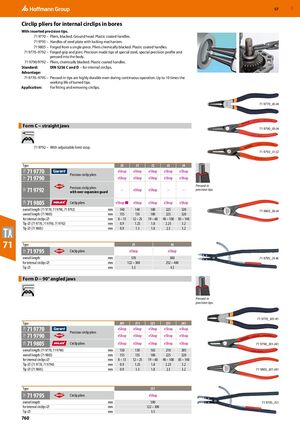

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 760

GBP 57 ​Circlip pliers for internal circlips in bores With inserted precision tips. 71 9770 – Pliers, blacked. Ground head. Plastic coated handles. 71 9795 – Handles of steel plate with locking mechanism. 71 9805 – Forged from a single piece. Pliers chemically blacked. Plastic coated handles. 71 9770–9792 – Forged grip and joint. Precision made tips of special steel, special precision profile and pressed into the body. 71 9790/9792 – Pliers, chemically blacked. Plastic coated handles. Standard: DIN 5256 C and D − for internal circlips. Advantage: 71 9770–9795 – Pressed-in tips are highly durable even during continuous operation. Up to 10 times the working life of turned tips. Application: For fitting and removing circlips. 71 9770_J0-J4 Form C − straight jaws 71 9790_J0-J4 71 9792 – With adjustable limit stop. 71 9792_J1-J2 Type J0 J1 J2 J3 J4 71 9770 eShop eShop eShop eShop eShop 73F 71B Precision circlip pliers 71 9790 eShop eShop eShop eShop eShop Pressed-in Precision circlip pliers 71 9792 – eShop eShop – – precision tips. 73F with over-expansion guard 71 9805 Circlip pliers eShop ■ eShop eShop eShop eShop 72B overall length (71 9770, 71 9790, 71 9792) mm 140 140 180 225 320 71 9805_J0-J4 overall length (71 9805) mm 135 135 180 225 320 for internal circlips ⌀ mm 8 – 13 12 – 25 19 – 60 40 – 100 85 – 140 Tip ⌀ (71 9770, 71 9790, 71 9792) mm 0.9 1.25 1.8 2.25 3.2 Tip ⌀ (71 9805) mm 0.9 1.3 1.8 2.3 3.2 71 Type J5 J6 71 9795 Circlip pliers eShop eShop 73F overall length mm 570 580 71 9795_J5-J6 for internal circlips ⌀ mm 122 – 300 252 – 400 Tip ⌀ mm 3.5 4.5 Form D − 90° angled jaws Pressed-in precision tips. 71 9770_J01-41 Type J01 J11 J21 J31 J41 71 9770 eShop eShop eShop eShop eShop 73F 71B Precision circlip pliers 71 9790 eShop eShop eShop eShop eShop 71 9805 Circlip pliers eShop eShop eShop eShop eShop 72B 71 9790_J01-J41 overall length (71 9770, 71 9790) mm 130 130 165 210 305 overall length (71 9805) mm 135 135 180 225 320 for internal circlips ⌀ mm 8 – 13 12 – 25 19 – 60 40 – 100 85 – 140 Tip ⌀ (71 9770, 71 9790) mm 0.9 1.25 1.8 2.25 3.2 Tip ⌀ (71 9805) mm 0.9 1.3 1.8 2.3 3.2 71 9805_J01-J41 Type J51 71 9795 Circlip pliers eShop 73F overall length mm 590 71 9795_J51 for internal circlips ⌀ mm 122 – 300 Tip ⌀ mm 3.5 760
