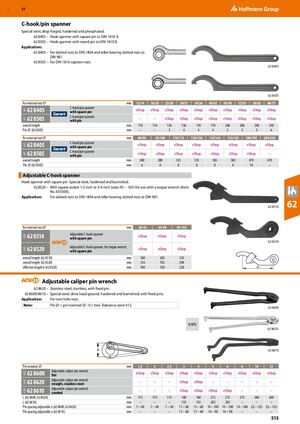

GBP 57 ​C-hook/pin spanner Special steel, drop-forged, hardened and phosphated. 62 8405 – Hook spanner with square pin to DIN 1810 A. 62 8505 – Hook spanner with round pin to DIN 1810 B. Application: 62 8405 – For slotted nuts to DIN 1804 and roller bearing slotted nuts to DIN 981. 62 8505 – For DIN 1816 capstan nuts. ​ 62 8405 ​ 62 8505 for external nut ⌀ mm 12/14 16/20 25/28 30/32 34/36 40/42 45/50 52/55 58/62 68/75 C-hook/pin spanner 62 8405 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 61C with square pin C-hook/pin spanner 62 8505 – – eShop eShop eShop eShop eShop eShop eShop eShop 61C with pin overall length mm 110 110 136 136 170 170 206 206 240 240 Pin ⌀ (62 8505) mm – – 3 4 4 4 5 5 5 6 for external nut ⌀ mm 80/90 95/100 110/115 120/130 135/145 155/165 180/195 205/220 C-hook/pin spanner 62 8405 eShop eShop eShop eShop eShop eShop eShop eShop 61C with square pin C-hook/pin spanner 62 8505 eShop eShop eShop eShop eShop eShop eShop – 61C with pin overall length mm 280 280 335 335 385 385 470 470 Pin ⌀ (62 8505) mm 6 8 8 8 8 8 10 – Adjustable C-hook spanner ​ Hook spanner with square pin. Special steel, hardened and burnished. 62 8520 – With square socket 1/2 inch or 3/4 inch (sizes 95 − 165) for use with a torque wrench (from No. 655500). Application: For slotted nuts to DIN 1804 and roller bearing slotted nuts to DIN 981. 62 8510 62 for external nut ⌀ mm 20-42 45-90 95-165 Adjustable C-hook spanner 62 8510 63Q eShop eShop eShop with square pin 62 8520 Adjustable C-hook spanner, for torque wrench 62 8520 63Q eShop eShop eShop with square pin overall length (62 8510) mm 180 250 335 overall length (62 8520) mm 135 192 298 effective length A (62 8520) mm 100 150 220 A ​ Adjustable caliper pin wrench 62 8620 – Stainless steel, stainless, with fixed pin. 62 8600/8610 – Special steel, drive head ground, hardened and burnished; with fixed pins. Application: For twin hole nuts. Note: Pin ⌀ = pin nominal ⌀ - 0.1 mm. Tolerance zone h12. 62 8600 S/STL 62 8620 a 62 8610 Pin nominal ⌀ mm 1,5 2 2,5 3 4 5 6 8 10 12 Adjustable caliper pin wrench 62 8600 63Q eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop flat Adjustable caliper pin wrench 62 8620 63Q – – – eShop eShop – – – – – straight, stainless steel Adjustable caliper pin wrench 62 8610 63Q – – – eShop eShop eShop eShop – – – cranked L (62 8600, 62 8620) mm 115 115 115 160 160 215 215 215 260 260 L (62 8610) mm – – – 153 153 205 205 – – – Pin spacing adjustable a (62 8600, 62 8620) mm 7 – 40 7 – 40 7 – 40 11 – 60 11 – 60 14 – 100 14 – 100 14 – 100 22 – 125 22 – 125 Pin spacing adjustable a (62 8610) mm – – – 11 – 60 11 – 60 14 – 90 14 – 90 – – – 513
