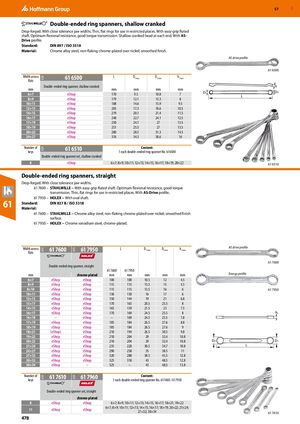

GBP 57 ​ Double-ended ring spanners, shallow cranked Drop-forged. With close tolerance jaw widths. Thin, flat rings for use in restricted places. With easy-grip fluted shaft. Optimum flexional resistance, good torque transmission. Shallow cranked head at each end. With AS- Drive profile. Standard: DIN 897 / ISO 3318 Material: Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. AS drive profile 61 6500 Width across 61 6500 L D1 max D2 max h1 max 63A flats Double-ended ring spanner, shallow cranked h mm mm mm mm mm D1 D2 6×7 eShop 170 9.5 10.8 7 L 8×9 eShop 179 12.1 13.3 8 10×11 eShop 188 14.6 15.9 9.5 12×13 eShop 203 17.3 18.6 10.5 14×15 eShop 219 20.1 21.4 11.5 16×17 eShop 248 22.7 24.1 12.5 17×19 eShop 250 24.1 27 13.5 18×19 eShop 251 25.5 27 13.5 20×22 eShop 280 28.5 31.3 14.5 24×27 eShop 376 34.3 38.6 16 Number of 61 6510 Content: 63A keys 1 each double-ended ring spanner No. 616500 Double-ended ring spanner set, shallow cranked 8 eShop 6×7; 8×9; 10×11; 12×13; 14×15; 16×17; 18×19; 20×22 ​ 61 6510 ​Double-ended ring spanners, straight Drop-forged. With close tolerance jaw widths. 61 7600 – STAHLWILLE − With easy-grip fluted shaft. Optimum flexional resistance, good torque transmission. Thin, flat rings for use in restricted places. With AS-Drive profile. 61 7950 – HOLEX − With oval shaft. 61 Standard: Material: DIN 837 B / ISO 3318 61 7600 – STAHLWILLE − Chrome alloy steel; non-flaking chrome-plated over nickel; smoothed finish surface. 61 7950 – HOLEX − Chrome vanadium steel, chrome-plated. AS drive profile Width across 61 7600 61 7950 L D1 max D2 max h1 max 62A 63A flats 61 7600 Double-ended ring spanner, straight 61 7600 61 7950 ​ ​ ​ mm chrome-plated mm mm mm mm mm Energy profile 6×7 eShop eShop 100 100 10.5 12 4.5 8×9 eShop eShop 115 115 13.5 15 5.5 8×10 eShop eShop 115 115 13.5 16 6 61 7950 10×11 eShop eShop 130 130 16 17 6 12×13 eShop eShop 150 144 19 21 6.8 13×17 eShop eShop 170 165 20.5 25.5 8 14×15 eShop eShop 165 159 21.5 23 7.5 16×17 eShop eShop 170 169 24.5 25.5 8 16×18 – eShop – 169 24.5 25.5 7.8 17×19 eShop eShop 185 184 26.5 27.6 8.8 18×19 eShop eShop 185 184 26.5 27.6 9 18×21 (eShop) eShop 210 194 26.5 30.5 9.8 19×22 eShop eShop 210 204 29 32.4 10.8 20×22 eShop eShop 210 204 29 32.4 10.8 D2 D1 21×24 eShop eShop 235 228 30.5 34.7 10.8 L 24×27 eShop eShop 290 258 35 38.5 11 27×32 eShop eShop 320 288 38.5 45.5 12.8 30×32 eShop eShop 325 318 43 48.5 12.8 30×34 eShop – 325 – 43 48.5 13.8 Number of 61 7610 61 7960 Content: 62A 63A keys 1 each double-ended ring spanner No. 617600 / 617950 Double-ended ring spanner set, straight chrome-plated 8 eShop eShop 6×7; 8×9; 10×11; 12×13; 14×15; 16×17; 18×21; 19×22 11 6×7; 8×9; 10×11; 12×13; 14×15; 16×17; 18×19; 20×22; 21×24; eShop eShop 27×32; 30×34 ​ 61 7610 478
