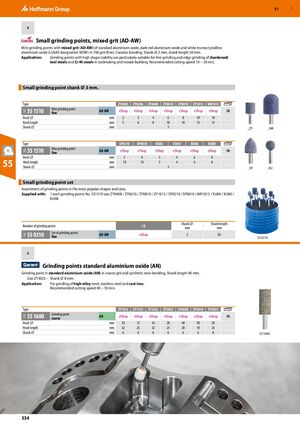

GBP 57 A Small grinding points, mixed grit (AD-AW) Mini grinding points with mixed grit (AD-AW) of standard aluminium oxide, dark red aluminium oxide and white monocrystalline aluminium oxide (LUKAS designation NDW) in 100 grit (fine). Ceramic bonding. Shank ⌀ 3 mm, shank length 50 mm. Application: Grinding points with high shape stability are particularly suitable for fine grinding and edge grinding of (hardened) tool steels and Cr-Ni steels in toolmaking and mould-building. Recommended cutting speed 10 − 30 m/s. Small grinding point shank ⌀ 3 mm. Type ZY0205 ZY0306 ZY0408 ZY0610 ZY0810 ZY1013 WR1013 Mini grinding point 55 1510 AD-AW eShop eShop eShop eShop eShop eShop eShop 10 56L fine Head ⌀ mm 2 3 4 6 8 10 10 ​ Head length mm 5 6 8 10 10 13 13 ​ Shank ⌀ mm 3 ​ _ZY _WR Type SP0510 SP0810 KU03 KU04 KU06 KU08 Mini grinding point 55 1510 AD-AW eShop eShop eShop eShop eShop eShop 10 56L fine Head ⌀ mm 5 8 3 4 6 8 ​ 55 Head length Shank ⌀ mm mm 10 10 3 3 4 6 8 ​ ​ _SP _KU Small grinding point set Assortment of grinding points in the most popular shapes and sizes. Supplied with: 1 each grinding points No. 551510 size ZY0408 / ZY0610 / ZY0810 / ZY1013 / SP0510 / SP0810 / WR1013 / KU04 / KU06 / KU08. Shank ⌀ Shank length Number of grinding points 10 mm mm Set of grinding points 55 0310 AD-AW eShop 3 50 56L fine 55 0310 A Grinding points standard aluminium oxide (AN) Grinding point in standard aluminium oxide (AN) in coarse grit and synthetic resin bonding. Shank length 40 mm. Size ZY5025 – Shank ⌀ 8 mm. Application: For grinding of high-alloy steel, stainless steel and cast iron. Recommended cutting speed 40 − 50 m/s. Type ZY1032 ZY1325 ZY1632 ZY2025 ZY4020 ZY5010 ZY5025 Grinding point 55 1600 AN eShop eShop eShop eShop eShop eShop eShop 10 51E coarse Head ⌀ mm 10 13 16 20 40 50 50 ​ Head length mm 32 25 32 25 20 10 25 ​ Shank ⌀ mm 6 6 6 6 6 6 8 ​ 55 1600 334
