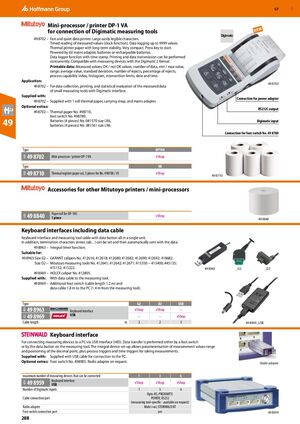

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 288

GBP 57 ​ Mini-processor / printer DP-1 VA for connection of Digimatic measuring tools NEW Digimatic 49 8702 – Fast and quiet data printer. Large easily legible characters. Timed reading of measured values (clock function). Data logging up to 9999 values. Thermal printer paper with long-term stability. Very compact. Press key to start. Powered by 6V mains adapter, batteries or rechargeable batteries. Data logger function with time stamp. Printing and data transmission can be performed concurrently. Compatible with measuring devices with the Digimatic 2 format. Printable data: Measured values; OK / not OK values, number of data, min / max value, range; average value, standard deviation, number of rejects, percentage of rejects, process capability index, histogram, intervention limits; date and time. Application: 49 8702 49 8702 – For data collection, printing, and statistical evaluation of the measured data of small measuring tools with Digimatic interface. Supplied with: Connection for power adapter 49 8702 – Supplied with 1 roll thermal paper, carrying strap, and mains adapter. Optional extras: RS232C output 49 8702 – Thermal paper No. 498710, foot switch No. 498780. 49 Batteries (4 pieces) No. 081570 size LR6, batteries (4 pieces) No. 081561 size LR6. Digimatic input Connection for foot switch No. 49 8780 Type DP1VA 49 8702 44A Mini-processor / printer DP-1 VA eShop Type VR 49 8710 44A Thermal register paper set, 5 pieces for No. 498700 / 01 eShop 49 8710 ​ Accessories for other Mitutoyo printers / mini-processors Paper roll for DP-1HS 49 8840 eShop 44A 1 piece 49 8840 ​Keyboard interfaces including data cable Keyboard interface and measuring tool cable with data button all in a single unit. In addition, termination characters (enter, tab. . ) can be set and then automatically sent with the data. 49 8963 – Integral timer function. Suitable for: 49 8963 Size G2 – GARANT calipers No. 412616; 412618; 412680; 412682; 412690; 412692; 418682. Size D2 – Mitutoyo measuring tools No. 412641; 412642; 412671; 415350 − 415400; 445135; 415152; 415222. 49 8963 _G2 _D2 49 8969 – HOLEX caliper No. 412805. Supplied with: With data cable to the measuring tool. 49 8969 – Additional foot switch (cable length 1.2 m) and data cable 1.8 m to the PC (1.4 m from the measuring tool). Type G2 D2 USB 49 8963 42L 49H Keyboard interface eShop eShop – USB 49 8969 – – eShop Cable length m 2 2 3 49 8969_USB ​ Keyboard interface For connecting measuring devices to a PC via USB interface (HID). Data transfer is performed either by a foot switch or by the data button on the measuring tool. The integral device set-up allows parameterisation of measurement values range and positioning of the decimal point, plus process triggers and time triggers for taking measurements. Supplied with: Supplied with USB cable for connection to the PC. Optional extras: Foot switch No. 498905. Radio adapter on request. Radio adapter maximum number of measuring devices that can be connected 1 3 6 Keyboard interface 49 8959 49H eShop eShop eShop USB Number of Digimatic inputs 1 3 6 Opto-RS; PROXIMITY; Cable connection port POWER; RS232 (measuring tool-specific - available on request) Radio adapter Mahr i-wi; STEINWALD BT Foot switch connection port yes 49 8959 288
