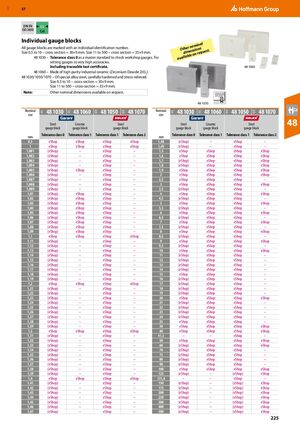

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 225
Навигация
Средства индивидуальной защиты Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
DIN EN ISO 3650 — Отдельные эталонные плитки
Все эталонные плитки имеют индивидуальный идентификационный номер.
Размер 0.5–10 мм: сечение 30×9 мм. Размер 11–500 мм: сечение 35×9 мм.
Варианты и применение
- 48 1030 – Класс допуска 0 как эталон для проверки рабочих калибров. Для установки калибров с очень высокой точностью. Включает прослеживаемый сертификат проверки.
- 48 1060 – Изготовлены из высокочистой промышленной керамики (диоксид циркония ZrO2).
- 48 1030/1050/1070 – Из специального сплавного стали, тщательно закаленные и подвергнутые снятию остаточных напряжений. Размер 0.5–10 мм: сечение 30×9 мм. Размер 11–500 мм: сечение 35×9 мм.
- Примечание: другие номинальные размеры доступны по запросу.
| Номинальный размер, мм | 48 1030 (Сталь, класс 0) | 48 1060 (Керамика, класс 1) | 48 1050 (Сталь, класс 1) | 48 1070 (Сталь, класс 2) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop | eShop |
Таблица доступности по размерам:
| Размер, мм | 48 1030 | 48 1060 | 48 1050 | 48 1070 | Размер, мм | 48 1030 | 48 1060 | 48 1050 | 48 1070 |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | eShop | eShop | eShop | eShop | 1.48 | (eShop) | – | eShop | – |
| 1 | eShop | eShop | eShop | eShop | 1.49 | (eShop) | – | eShop | – |
| 1.001 | (eShop) | – | eShop | – | 1.5 | eShop | eShop | eShop | eShop |
| 1.002 | (eShop) | – | eShop | – | 1.6 | eShop | eShop | eShop | eShop |
| 1.003 | (eShop) | – | eShop | – | 1.7 | (eShop) | eShop | eShop | eShop |
| 1.004 | (eShop) | – | eShop | – | 1.8 | (eShop) | eShop | eShop | eShop |
| 1.005 | (eShop) | eShop | eShop | – | 1.9 | eShop | eShop | eShop | eShop |
| 1.006 | (eShop) | – | eShop | – | 2 | eShop | eShop | eShop | eShop |
| 1.007 | (eShop) | – | eShop | – | 2.5 | eShop | eShop | eShop | – |
| 1.008 | (eShop) | – | eShop | – | 3 | eShop | eShop | eShop | eShop |
| 1.009 | (eShop) | – | eShop | – | 3.5 | (eShop) | eShop | eShop | – |
| 1.01 | (eShop) | eShop | eShop | – | 4 | eShop | eShop | eShop | eShop |
| 1.02 | (eShop) | eShop | eShop | – | 4.5 | (eShop) | eShop | eShop | – |
| 1.03 | (eShop) | eShop | eShop | – | 5 | eShop | eShop | eShop | eShop |
| 1.04 | (eShop) | eShop | eShop | – | 5.5 | (eShop) | eShop | eShop | – |
| 1.05 | (eShop) | eShop | eShop | – | 6 | eShop | eShop | eShop | eShop |
| 1.06 | (eShop) | eShop | eShop | – | 6.5 | (eShop) | eShop | eShop | – |
| 1.07 | (eShop) | eShop | eShop | – | 7 | eShop | eShop | eShop | eShop |
| 1.08 | (eShop) | eShop | eShop | – | 7.5 | (eShop) | eShop | eShop | – |
| 1.09 | (eShop) | eShop | eShop | – | 8 | eShop | eShop | eShop | eShop |
| 1.1 | eShop | eShop | eShop | eShop | 8.5 | (eShop) | eShop | eShop | – |
| 1.11 | (eShop) | – | eShop | – | 9 | eShop | eShop | eShop | eShop |
| 1.12 | (eShop) | – | eShop | – | 9.5 | (eShop) | eShop | eShop | – |
| 1.13 | (eShop) | – | eShop | – | 10 | eShop | eShop | eShop | eShop |
| 1.14 | (eShop) | – | eShop | – | 11 | (eShop) | eShop | eShop | – |
| 1.15 | (eShop) | – | eShop | – | 12 | (eShop) | eShop | eShop | – |
| 1.16 | (eShop) | – | eShop | – | 13 | (eShop) | eShop | eShop | – |
| 1.17 | (eShop) | – | eShop | – | 14 | (eShop) | eShop | eShop | – |
| 1.18 | (eShop) | – | eShop | – | 15 | eShop | eShop | eShop | – |
| 1.19 | (eShop) | – | eShop | – | 16 | (eShop) | eShop | eShop | – |
| 1.2 | eShop | eShop | eShop | eShop | 17 | (eShop) | eShop | eShop | – |
| 1.21 | (eShop) | – | eShop | – | 18 | (eShop) | eShop | eShop | – |
| 1.22 | (eShop) | – | eShop | – | 19 | (eShop) | eShop | eShop | – |
| 1.23 | (eShop) | – | eShop | – | 20 | eShop | eShop | eShop | eShop |
| 1.24 | (eShop) | – | eShop | – | 21 | (eShop) | eShop | eShop | – |
| 1.25 | (eShop) | – | eShop | – | 22 | (eShop) | eShop | eShop | – |
| 1.26 | (eShop) | – | eShop | – | 23 | (eShop) | eShop | eShop | – |
| 1.27 | (eShop) | – | eShop | – | 24 | (eShop) | eShop | eShop | – |
| 1.28 | (eShop) | – | eShop | – | 25 | eShop | eShop | eShop | – |
| 1.29 | (eShop) | – | eShop | – | 30 | eShop | eShop | eShop | eShop |
| 1.3 | eShop | eShop | eShop | eShop | 40 | eShop | eShop | eShop | eShop |
| 1.31 | (eShop) | – | eShop | – | 41.3 | – | – | eShop | – |
| 1.32 | (eShop) | – | eShop | – | 50 | eShop | eShop | eShop | eShop |
| 1.33 | (eShop) | – | eShop | – | 60 | (eShop) | eShop | eShop | eShop |
| 1.34 | (eShop) | – | eShop | – | 70 | (eShop) | eShop | eShop | – |
| 1.35 | (eShop) | – | eShop | – | 75 | (eShop) | eShop | eShop | – |
| 1.36 | (eShop) | – | eShop | – | 80 | (eShop) | eShop | eShop | – |
| 1.37 | (eShop) | – | eShop | – | 90 | (eShop) | eShop | eShop | – |
| 1.38 | (eShop) | – | eShop | – | 100 | eShop | eShop | eShop | eShop |
| 1.39 | (eShop) | – | eShop | – | 125 | (eShop) | – | (eShop) | eShop |
| 1.4 | eShop | eShop | eShop | eShop | 131.4 | – | – | eShop | – |
| 1.41 | (eShop) | – | eShop | – | 150 | (eShop) | – | (eShop) | eShop |
| 1.42 | (eShop) | – | eShop | – | 175 | (eShop) | – | (eShop) | eShop |
| 1.43 | (eShop) | – | eShop | – | 200 | (eShop) | – | (eShop) | eShop |
| 1.44 | (eShop) | – | eShop | – | 250 | (eShop) | – | (eShop) | eShop |
| 1.45 | (eShop) | – | eShop | – | 300 | (eShop) | – | (eShop) | eShop |
| 1.46 | (eShop) | – | eShop | – | 400 | (eShop) | – | (eShop) | eShop |
| 1.47 | (eShop) | – | eShop | – | 500 | (eShop) | – | (eShop) | eShop |
