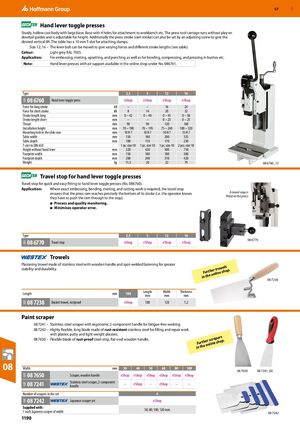

GBP 57 ​ Hand lever toggle presses Sturdy, hollow cast body with large base. Base with 4 holes for attachment to workbench etc. The press tool carriage runs without play on dovetail guides and is adjustable for height. Additionally the press stroke (ram stroke) can also be set by an adjusting screw to give the desired vertical lift. The table has a 10 mm T-slot for attaching clamps. Size 12; 16 – The lever bolt can be moved to give varying forces and different stroke lengths (see table). Colour: Light grey RAL 7035. Application: For embossing, riveting, upsetting, and punching as well as for bending, compressing, and pressing in bushes etc. Note: Hand lever presses with air support available in the online shop under No. 086761. Type 2,5 5 12 16 08 6760 Hand lever toggle press eShop eShop eShop eShop 08V Force for long stroke kN – – 16 24 Force for short stroke kN 8 14 20 32 Stroke length long mm 0 – 42 0 – 40 0 – 45 0 – 58 Stroke length short mm – – 0 – 23 0 – 25 Throat mm 90 90 120 160 Installation height mm 70 – 190 70 – 195 75 – 240 100 – 320 Mounting hole in the slide ram mm 10 H 7 10 H 7 10 H 7 15 H 7 Table width mm 150 180 200 325 Table depth mm 100 110 170 230 T-slot to DIN 650 1 pc. size 10 1 pc. size 10 1 pc. size 10 2 pcs. size 10 Height without hand lever mm 320 420 500 710 Footprint width mm 150 180 180 300 Footprint depth mm 200 240 310 420 Weight kg 11.5 20 32 79 08 6760_12 ​ Travel stop for hand lever toggle presses Travel stop for quick and easy fitting to hand lever toggle presses (No. 086760). Application: Where exact embossing, bending, riveting, and cutting work is required, the travel stop ensures that the press ram reaches precisely the bottom of its stroke (i.e. the operator knows A travel stop is fitted to the press they have to push the ram through to the stop). ■ Process and quality monitoring. ■ Minimises operator error. Type 2,5 5 12 16 08 6770 08 6770 Travel stop eShop eShop eShop eShop 08V ​ Trowels Plastering trowel made of stainless steel with wooden handle and spot-welded fastening for greater wels . stability and durability. er tro p Furthonline sho in t h e 08 7238 Length Width Thickness Length mm 180 mm mm mm 08 7238 Bucket trowel, rustproof eShop 180 120 1.2 08R ​Paint scraper 08 7241 – Stainless steel scraper with ergonomic 2-component handle for fatigue-free working. 08 7242 – Highly flexible, long blade made of rust-resistant stainless steel for filling and repair work with plaster, putty and light-weight plasters. apers 08 7650 – Flexible blade of rust-proof steel strip, flat-oval wooden handle. u r t h er scr e shop. F onlin in the 08 Width mm 30 40 50 60 80 100 08 7650 08 7241_60 08 7650 ​ Scraper, wooden handle eShop eShop eShop eShop eShop eShop 08R Stainless steel scraper, 2-component 08 7241 – eShop – eShop – – 08R handle Number of scrapers in the set 4 08 7242 Japanese scraper set eShop 08R Supplied with: 50; 80; 100; 120 mm 1 each Japanese scraper of width 08 7242 1190
