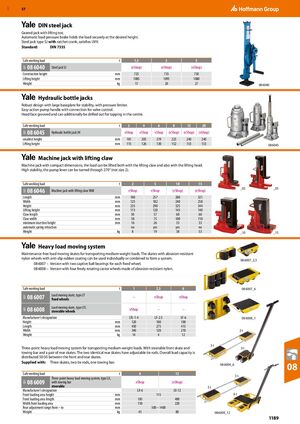

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1189

GBP 57 ​ DIN steel jack Geared jack with lifting toe. Automatic load pressure brake holds the load securely at the desired height. Steel jack type SJ with ratchet crank, satisfies UVV. Standard: DIN 7355 Safe working load t 1,5 3 5 08 6040 Steel jack SJ (eShop) (eShop) (eShop) 08Y Construction height mm 725 735 730 Lifting height mm 1085 1095 1080 Weight kg 17 20 27 08 6040 ​ Hydraulic bottle jacks Robust design with large baseplate for stability, with pressure limiter. Easy-action pump handle with connection for valve control. Head face grooved and can additionally be drilled out for tapping in the centre. Safe working load t 2 4 6 8 12 20 08 6045 Hydraulic bottle jack JH eShop eShop eShop (eShop) (eShop) (eShop) 08Y smallest height mm 181 205 219 225 240 240 Lifting height mm 115 126 130 152 153 153 08 6045 ​ Machine jack with lifting claw Machine jack with compact dimensions, the load can be lifted both with the lifting claw and also with the lifting head. High stability, the pump lever can be turned through 270° (not size 2). Safe working load t 2 5 10 15 _02 _05 08 6046 Machine jack with lifting claw YAM eShop eShop (eShop) (eShop) 08Y Length mm 180 257 280 321 Width mm 125 182 240 258 Height mm 235 290 325 344 Lifting height mm 113 120 145 140 Claw length mm 50 57 60 60 Claw width mm 50 75 100 110 minimum insertion height mm 16 26 33 33 automatic spring retraction no yes yes no Weight kg 8 19 38 53 _10 _15 ​ Heavy load moving system Maintenance-free load moving skates for transporting medium-weight loads. The skates with abrasion-resistant nylon wheels with anti-slip rubber coating can be used individually or combined to form a system. 08 6007_2,5 08 6007 – Version with two captive ball bearings for each fixed wheel. 08 6008 – Version with four freely rotating castor wheels made of abrasion-resistant nylon. Safe working load t 1 2,5 6 08 6007_6 Load moving skate, type LF 08 6007 08Y – eShop eShop fixed wheels Load moving skate, type LFL 08 6008 08Y eShop – – steerable wheels Manufacturer‘s designation LFL-1-4 LF-2.5 LF-6 08 6008_1 Height mm 120 100 100 Length mm 430 275 415 Width mm 340 120 210 3t Weight kg 14 4 12 3t Three-point heavy load moving system for transporting medium-weight loads. With steerable front skate and 3t towing bar and a pair of rear skates. The two identical rear skates have adjustable tie rods. Overall load capacity is distributed 50:50 between the front and rear skates. Supplied with: Three skates, two tie rods, one towing bar. Safe working load t 6 12 08 6009_6 08 3t Three-point heavy load moving system, type LX, 08 6009 08Y with towing bar eShop (eShop) steerable 3t Manufacturer‘s designation LX-6 LX-12 Front loading area height mm 115 6t Front loading area length mm 185 400 Width front loading area mm 150 220 Rear adjustment range from – to mm 500 – 1400 Weight kg 45 80 08 6009_12 1189
