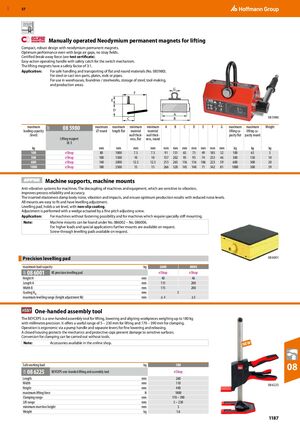

GBP 57 Manually operated Neodymium permanent magnets for lifting Compact, robust design with neodymium permanent magnets. Optimum performance even with large air gaps, no stray fields. Certified break-away force (see test certificate). Easy-action operating handle with safety catch for the switch mechanism. The lifting magnets have a safety factor of 3:1. Application: For safe handling and transporting of flat and round materials (No. 085980). For steel or cast iron parts, plates, rods or pipes. For use in warehouses, foundries / steelworks, storage of steel, tool-making, and production areas. G F E D A C B 08 5980 maximum 08 5980 maximum maximum minimum minimum A B C D E F G maximum maximum Weight 08P loading capacity ⌀ round length flat material material lifting ca- lifting ca- (level) wall thick- wall thick- pacity flat pacity round Lifting magnet ness, flat ness, round UL E kg mm mm mm mm mm mm mm mm mm mm mm kg kg kg 100 eShop 80 1000 7.5 7.5 91 131 65 75 49 185 32 100 65 3 300 eShop 100 1500 10 10 157 202 95 95 74 253 46 300 150 10 600 eShop 140 2000 12.5 12.5 213 265 116 116 106 223 59 600 300 20 1000 eShop 180 2500 15 15 266 320 145 148 71 342 81 1000 300 39 ​ Machine supports, machine mounts Anti-vibration systems for machines. The decoupling of machines and equipment, which are sensitive to vibration, improves process reliability and accuracy. The inserted elastomers damp body noise, vibration and impacts, and ensure optimum production results with reduced noise levels. All mounts are easy to fit and have levelling adjustment. Levelling pad, holds a set level, with non-slip coating. Adjustment is performed with a wedge actuated by a fine pitch adjusting screw. Application: For machines without fastening possibility and for machines which require specially stiff mounting. Note: Machine mounts can be found under No. 086002 – No. 086006. For higher loads and special applications further mounts are available on request. Screw-through levelling pads available on request. Precision levelling pad ​ 08 6001 maximum load capacity kg 2600 8000 08 6001 KE precision levelling pad eShop eShop 08Y Height H mm 40 46 Length A mm 115 200 Width B mm 115 200 Coating HW mm 5 maximum levelling range (height adjustment Ni) mm ±4 ±3 ​ One-handed assembly tool The BEYCEPS is a one-handed assembly tool for lifting, lowering and aligning workpieces weighing up to 180 kg with millimetre precision. It offers a useful range of 5 – 230 mm for lifting and 170 – 390 mm for clamping. Operation is ergonomic via a pump handle and separate levers for fine lowering and releasing. A closed housing protects the mechanics and protective caps prevent damage to sensitive surfaces. Conversion for clamping can be carried out without tools. Note: Accessories available in the online shop. NEW Safe working load 08 6225 BEYCEPS one-handed lifting and assembly tool kg 180 eShop 08 83K Length mm 260 Width mm 110 08 6225 Height mm 440 maximum lifting force N 1800 Clamping range mm 170 – 390 Lift range mm 5 – 230 minimum insertion height mm 5 Weight kg 1.6 1187
