Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1131

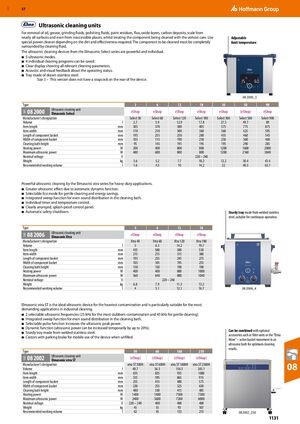

GBP 57 ​ Ultrasonic cleaning units For removal of oil, grease, grinding fluids, polishing fluids, paint residues, flux, oxide layers, carbon deposits, scale from nearly all surfaces and even from inaccessible places, whilst treating the component being cleaned with the utmost care. Use Adjustable special power cleaner depending on the dirt and effectiveness required. The component to be cleaned must be completely limit temperature surrounded by cleaning fluid. The ultrasonic cleaning devices from the Elmasonic Select series are powerful and individual. ■ 5 ultrasonic modes. ■ 4 individual cleaning programs can be saved. ■ Clear display showing all relevant cleaning parameters. ■ Acoustic and visual feedback about the operating status. ■ Tray made of drawn stainless steel Size 3 – This version does not have a stopcock on the rear of the device. 08 2000_3 Type 3 6 12 18 30 50 90 Ultrasonic cleaning unit 08 2000 eShop eShop eShop eShop eShop (eShop) eShop 04S Elmasonic Select Manufacturer‘s designation Select 30 Select 60 Select 120 Select 180 Select 300 Select 500 Select 900 Volume l 2.7 5.9 12.9 17.8 27.5 49.7 89 Item length mm 305 370 380 405 575 775 875 Item width mm 170 210 300 360 360 425 595 Length of component basket mm 195 255 250 280 455 460 545 Width of component basket mm 105 115 190 250 250 300 460 Cleaning bath height mm 95 145 195 195 195 290 285 Heating power W 200 400 800 800 1200 1600 2000 Maximum ultrasonic power W 480 600 800 800 1200 2160 3840 Nominal voltage V 220 – 240 Weight kg 3.6 5.2 7.7 10.2 12.2 30.4 43.4 Recommended working volume l 1.6 4.3 10 14.2 22 40.3 63.7 Powerful ultrasonic cleaning by the Elmasonic xtra series for heavy-duty applications. ■ Greater ultrasonic effect due to automatic dynamic function. ■ Selectable Eco mode for gentle cleaning and energy savings. ■ Integrated sweep function for even sound distribution in the cleaning bath. ■ Individual timer and temperature control. ■ Clearly arranged, splash-proof control panel. ■ Automatic safety shutdown. Sturdy tray made from welded stainless steel, suitable for continuous operation. Type 4 6 12 18 Ultrasonic cleaning unit 08 2006 eShop eShop eShop eShop 04S Elmasonic Xtra Manufacturer‘s designation Xtra 40 Xtra 60 Xtra 120 Xtra 180 Volume l 5 6.3 14.2 19.7 Item length mm 435 500 500 530 Item width mm 215 215 315 380 Length of component basket mm 195 255 245 275 Width of component basket mm 105 105 195 255 Cleaning bath height mm 150 150 190 190 Heating power W 400 400 800 1000 Maximum ultrasonic power W 560 640 880 1040 Nominal voltage V 220 – 240 Weight kg 6.8 7.9 11.3 13.2 Recommended working volume l 4 5.1 12.1 16.7 08 2006_4 Elmasonic xtra ST is the ideal ultrasonic device for the heaviest contamination and is particularly suitable for the most demanding applications in industrial cleaning. ■ 2 selectable ultrasonic frequencies (25 kHz for the most stubborn contamination and 45 kHz for gentle cleaning). ■ Integrated sweep function for even sound distribution in the cleaning bath. ■ Selectable pulse function increases the ultrasonic peak power. ■ Dynamic function (ultrasonic power can be increased temporarily by up to 20%). Can be combined with optional ■ Sturdy tray made from welded stainless steel. accessories such as filter units or the “Elma ■ Castors with parking brake for mobile use of the device when unfilled. Move” – active basket movement in an ultrasonic bath for optimum cleaning results. Type 50 60 160 250 Ultrasonic cleaning unit 08 2002 (eShop) (eShop) (eShop) (eShop) 04S Elmasonic xtra ST Manufacturer‘s designation Volume Item length mm l xtra ST 500H 48.7 655 xtra ST 600H 56.3 825 xtra ST 1600H 156.3 935 xtra ST 2500H 245.1 1080 08 Item width mm 555 595 865 915 Length of component basket mm 255 415 480 575 Width of component basket mm 230 255 525 630 Cleaning bath height mm 480 330 415 485 Heating power W 1400 1400 7500 7500 Maximum ultrasonic power W 2400 3600 7200 8000 Nominal voltage V 220 – 240 400 400 400 Weight kg 45 55 93 107 Recommended working volume l 42 45 133 215 08 2002_250 1131
