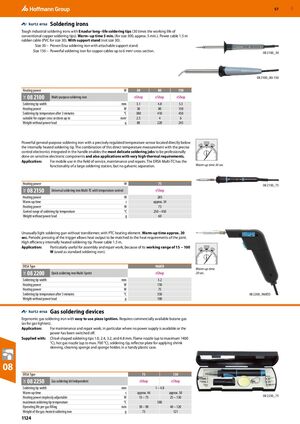

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1124

GBP 57 ​ Soldering irons Tough industrial soldering irons with Ersadur long−life soldering tips (30 times the working life of conventional copper soldering tips). Warm−up time 3 min. (for size 300, approx. 5 min.). Power cable 1.5 m rubber cable (PVC for size 30). With support stand (not size 30). Size 30 – Proven Ersa soldering iron with attachable support stand. Size 150 – Powerful soldering iron for copper cables up to 6 mm2 cross section. 08 2100_30 08 2100_80-150 Heating power W 30 80 150 08 2100 04C Multi-purpose soldering iron eShop eShop eShop Soldering tip width mm 3.1 4.8 5.3 Heating power W 30 80 150 Soldering tip temperature after 3 minutes °C 380 410 450 suitable for copper cross sections up to mm2 2.5 4 6 Weight without power lead g 80 220 245 Powerful general-purpose soldering iron with a precisely regulated temperature sensor located directly below the internally heated soldering tip. The combination of this direct temperature measurement with the precise control electronics integrated in the handle enables the most delicate soldering jobs to be professionally done on sensitive electronic components and also applications with very high thermal requirements. Application: For mobile use in the field of service, maintenance and repairs. The ERSA Multi-TC has the functionality of a large soldering station, but no galvanic separation. Warm-up time 34 sec Heating power W 75 08 2150_75 08 2150 04C Universal soldering iron Multi-TC with temperature control eShop Heating power W 285 Warm-up time s approx. 34 Heating power W 75 Control range of soldering tip temperature °C 250 – 450 Weight without power lead g 60 Unusually light soldering gun without transformer; with PTC heating element. Warm-up time approx. 20 sec. Periodic pressing of the trigger allows heat output to be matched to the heat requirements of the joint. High efficiency internally heated soldering tip. Power cable 1.5 m. Application: Particularly useful for assembly and repair work, because of its working range of 15 − 100 W (used as standard soldering iron). ERSA Type 960ED Warm-up time 08 2200 04C Quick soldering iron Multi-Sprint eShop 20 sec. Soldering tip width mm 3.2 Heating power W 150 Heating power W 75 Soldering tip temperature after 3 minutes °C 350 08 2200_960ED Weight without power lead g 100 ​ Gas soldering devices Ergonomic gas soldering iron with easy to use piezo ignition. Requires commercially available butane gas (as for gas lighters). Application: For maintenance and repair work, in particular where no power supply is available or the power has been switched off. Supplied with: Chisel-shaped soldering tips 1.0, 2.4, 3.2, and 4.8 mm. Flame nozzle (up to maximum 1400 °C), hot gas nozzle (up to max. 700 °C), soldering tip, reflector plate for applying shrink sleeving, cleaning sponge and sponge holder, in a handy plastic case. 08 ERSA Type 75 130 08 2250 04C Gas soldering kit Independent eShop eShop Soldering tip width mm 1 – 4.8 Warm-up time s approx. 46 approx. 50 Heating power steplessly adjustable W 15 – 75 25 – 130 08 2250_75 maximum soldering tip temperature °C 580 Operating life per gas filling min 30 – 90 40 – 120 Weight of the gas-heated soldering iron g 73 121 1124
