Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1078

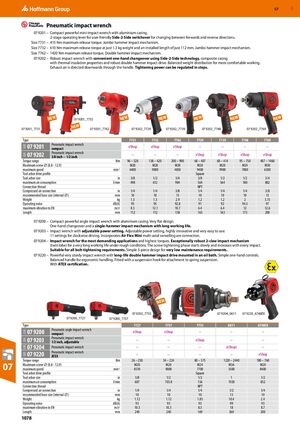

GBP 57 ​ Pneumatic impact wrench 07 9201 – Compact powerful mini-impact wrench with aluminium casing. 2-stage operating lever for user-friendly Side-2-Side switchover for changing between forwards and reverse directions. Size 7731 – 415 Nm maximum release torque. Jumbo hammer impact mechanism. Size 7732 – 610 Nm maximum release torque at just 1.3 kg weight and an installed length of just 112 mm. Jumbo hammer impact mechanism. Size 7762 – 1420 Nm maximum release torque. Double hammer impact mechanism. 07 9202 – Robust impact wrench with convenient one-hand changeover using Side-2-Side technology, composite casing with thermal insulation properties and robust double hammer impact drive. Balanced weight distribution for more comfortable working. Exhaust air is directed downwards through the handle. Tightening power can be regulated in steps. NEW 07 9201_7732 NEW NEW NEW NEW NEW 07 9201_7731 NEW 07 9201_7762 07 9202_7729 07 9202_7739 07 9202_7748 07 9202_7769 Type 7731 7732 7762 7729 7739 7748 7769 Pneumatic impact wrench 07 9201 eShop eShop eShop – – – – 03R compact Pneumatic impact wrench 07 9202 – – – eShop eShop eShop eShop 03R 3/8 inch − 1/2 inch Torque range Nm 96 – 328 138 – 420 200 – 900 68 – 407 68 – 414 95 – 750 407 – 1460 Maximum screw ⌀ (8.8 - 12.9) M20 M20 M20 M20 M20 M24 M30 maximum speed min-1 6400 9000 4850 9400 9900 7000 6500 Tool arbor drive profile Square Tool arbor size in 3/8 1/2 3/4 3/8 1/2 1/2 3/4 maximum air consumption l/min 498 612 984 564 564 180 882 Connection thread NPT Compressed air connection in 1/4 1/4 3/8 1/4 1/4 1/4 3/8 recommended hose size (internal ⌀) mm 10 10 13 10 10 10 13 Weight kg 1.3 1.3 2.9 1.2 1.2 2 3.15 Operating noise dB(A) 93 95 92.8 91 92 94.3 97 maximum vibration to EN m/s2 8.5 12.1 10.7 6.4 6.4 12 12.6 Length mm 112 112 158 163 163 175 200 07 9200 – Compact powerful angle impact wrench with aluminium casing. Very flat design. One-hand changeover and a single-hammer impact mechanism with long working life. 07 9203 – Impact wrench with adjustable power setting. Adjustable power setting, highly innovative and very easy to use: 11 settings for clockwise driving. Incorporates Air Flex Mini multi-axial swivelling are connection. 07 9204 – Impact wrench for the most demanding applications and highest torques. Exceptionally robust 2-claw impact mechanism (twin lobe) for a very long working life under rough conditions. The screw tightening phase starts slowly and increases with every impact. Suitable for all bolt-tightening requirements. Simple 3-piece design for very low maintenance requirements. 07 9220 – Powerful very sturdy impact wrench with long-life double hammer impact drive mounted in an oil bath. Simple one-hand controls. Balanced handle for ergonomic handling. Fitted with a suspension hook for attachment to spring suspension. With ATEX certification. NEW 07 9203_7755 07 9204_0611 07 9220_6748EX 07 9200_7727 07 9200_7737 Type 7727 7737 7755 0611 6748EX Pneumatic angle impact wrench 07 9200 eShop eShop – – – 03R compact Pneumatic impact wrench 07 9203 – – eShop – – 03R 03R 03R 1/2 inch, adjustable 07 9204 Pneumatic impact wrench – – – (eShop) – Pneumatic impact wrench 07 9220 ATEX – – – – eShop Torque range Nm 26 – 250 34 – 224 80 – 575 1220 – 2440 180 – 760 07 Maximum screw ⌀ (8.8 - 12.9) maximum speed Tool arbor drive profile min-1 M20 8510 M20 9000 M24 7700 Square M36 3500 M20 8400 Tool arbor size in 3/8 1/2 1/2 1 1/2 maximum air consumption l/min 687 703.8 156 1920 852 Connection thread NPT Compressed air connection in 1/4 1/4 1/4 1/2 1/4 recommended hose size (internal ⌀) mm 10 10 10 13 10 Weight kg 1.12 1.12 1.85 10.4 2.4 Operating noise dB(A) 93 93 93 99 93 maximum vibration to EN m/s2 10.3 10.3 8.5 18 8.7 Length mm 240 240 169 360 200 1078
