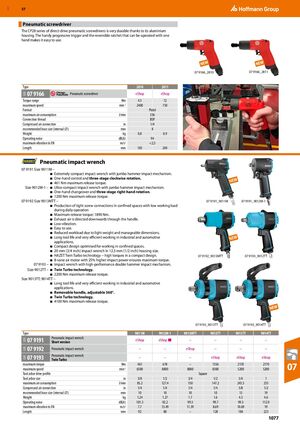

GBP 57 Pneumatic screwdriver ​ The CP28 series of direct-drive pneumatic screwdrivers is very durable thanks to its aluminium housing. The handy progressive trigger and the reversible ratchet that can be operated with one hand makes it easy to use. NEW NEW ​ 07 9166_2810 ​ 07 9166_2811 Type 2810 2811 07 9166 Pneumatic screwdriver eShop eShop 03R Torque range Nm 4.5 12 maximum speed min-1 2400 750 Format Pistol maximum air consumption l/min 336 Connection thread BSP Compressed air connection in 1/4 recommended hose size (internal ⌀) mm 8 Weight kg 0.8 0.9 Operating noise dB(A) 94 maximum vibration to EN m/s2 <2,5 Length mm 183 204 ​ Pneumatic impact wrench 07 9191 Size 9011M – ■ Extremely compact impact wrench with jumbo hammer impact mechanism. ■ One-hand control and three-stage clockwise rotation. ■ 461 Nm maximum release torque. NEW Size 9012M-1 – ■ Ultra-compact impact wrench with jumbo hammer impact mechanism. ■ One-hand changeover and three-stage right-hand rotation. ■ 1200 Nm maximum release torque. 07 9192 Size 9013MTT – ​ 07 9191_9011M ​ 07 9191_9012M-1 ■ Production of tight screw connections in confined spaces with low working load during daily operation ■ Maximum release torque: 1890 Nm. ■ Exhaust air is directed downwards through the handle. ■ Low-vibration. ■ Easy to use. ■ Reduced workload due to light weight and manageable dimensions. ■ Long tool life and very efficient working in industrial and automotive NEW applications. ■ Compact design optimised for working in confined spaces. ■ 20 mm (3/4 inch) impact wrench in 12.5 mm (1/2 inch) housing size. ■ HAZET Twin Turbo technology − high torques in a compact design. ​ 07 9192_9013MTT ​ 07 9193_9012TT ■ 8-vane air motor with 25% higher impact power ensures maximum torque. 07 9193 – ■ Impact wrench with high-performance double hammer impact mechanism. Size 9012TT – ■ Twin Turbo technology. ■ 2200 Nm maximum release torque. Size 9013TT; 9014TT – ■ Long tool life and very efficient working in industrial and automotive applications. ■ Removable handle, adjustable 360°. ■ Twin Turbo technology. ■ 4100 Nm maximum release torque. NEW ​ 07 9193_9013TT ​ 07 9193_9014TT Type 9011M 9012M-1 9013MTT 9012TT 9013TT 9014TT Pneumatic impact wrench 07 9191 eShop eShop ■ – – – – 03R Short version 07 9192 Pneumatic impact wrench – – eShop – – – 03R Pneumatic impact wrench 07 9193 – – – eShop eShop eShop 03R Twin Turbo maximum torque maximum speed Tool arbor drive profile Nm min-1 461 6500 678 8800 – 8000 Square 1356 8300 2170 5200 2170 5200 07 Tool arbor size in 3/8 1/2 3/4 1/2 3/4 1 maximum air consumption l/min 85.2 127.4 150 147.2 243.5 235 Compressed air connection in 1/4 1/4 1/4 1/4 3/8 1/2 recommended hose size (internal ⌀) mm 10 10 10 10 13 19 Weight kg 1.24 1.27 1.7 1.6 4.5 4.6 Operating noise dB(A) 101.3 92.2 99.3 99.7 99.5 112.9 maximum vibration to EN m/s2 7.7 13.49 11.39 8.69 10.69 19 Length mm 92 80 – 128 184 223 1077
