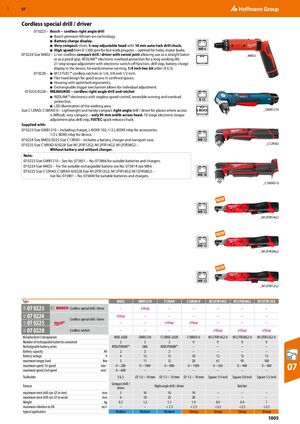

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1005

GBP 57 ​Cordless special drill / driver 07 0223 – Bosch − cordless right angle drill ■ Bosch premium lithium-ion technology. ■ Battery charge display. ■ Very compact: short, 5-way adjustable head with 10 mm auto-lock drill chuck. ■ High speed from 0-1300 rpm for fast work progress – optimal for holes, motor brake. MB 4 07 0224 Size M4D2 – Li-ion cordless compact drill / driver with swivel joint allowing use as a straight baton ​_M4D2 or as a pistol grip. REDLINK™ electronic overload protection for a long working life. 21-step torque adjustment with electronic switch-off function, drill step, battery charge display in the device, forwards/reverse running, 1/4 inch hex bit arbor (E 6.3). 07 0228 – ■ M12 FUEL™ cordless ratchets in 1/4, 3/8 and 1/2 inch. ■ Flat head design for good access in confined spaces. ■ Housing with optimised ergonomics. ■ Exchangeable trigger mechanism allows for individual adjustment. 07 0225/0228 – MILWAUKEE − cordless right angle drill and ratchet ■ REDLINK™ electronics with stepless speed control, reversible running and overload protection. B 12 ■ LED illumination of the working area. Size C12RAD; C18RAD-0 – Lightweight and handy compact right angle drill / driver for places where access L-BOXX ​_GWB1210 is difficult, very compact − only 95 mm width across head. 10-stage electronic torque adjustment plus drill step, FIXTEC quick-release chuck. Supplied with: 07 0223 Size GWB1210 – Including charger, L-BOXX 102, 1/2 L-BOXX inlay for accessories, 1/2 L-BOXX inlay for device. 07 0224 Size M4D2/0225 Size C12RAD – Includes a battery, charger and transport case. MB 12 07 0225 Size C18RAD-0/0228 Size M12FIR12G2; M12FIR14G2; M12FIR38G2 – ​_C12RAD Without battery and without charger. Note: 07 0223 Size GWB1210 – See No. 073851 – No. 073866 for suitable batteries and chargers. 07 0224 Size M4D2 – For the suitable rechargeable battery see No. 073814 size MB4. 07 0225 Size C12RAD; C18RAD-0/0228 Size M12FIR12G2; M12FIR14G2; M12FIR38G2 – See No. 073801 – No. 073840 for suitable batteries and chargers. MB 18 ​_C18RAD-0 NEW MB 12 _M12FIR14G2 NEW MB 12 _M12FIR38G2 NEW MB 12 _M12FIR12G2 Type M4D2 GWB1210 C12RAD C18RAD-0 M12FIR14G2 M12FIR38G2 M12FIR12G2 07 0223 Cordless special drill / driver – eShop – – – – – 03B 07 0224 eShop – – – – – – 03L 03L Cordless special drill / driver 07 0225 – – eShop eShop – – – 07 0228 Cordless ratchet – – – – eShop eShop eShop 03L Manufacturer‘s designation M4D-202B GWB1210 C12RAD-202B C18RAD-0 M12 FIR14G2-0 M12 FIR38G2-0 M12FIR12G2-0 Number of rechargeable batteries contained 2 2 2 0 0 0 0 Rechargeable battery series REDLITHIUM™ GBA REDLITHIUM™ – – – – Battery capacity Ah 2 2 2 – – – – Battery voltage V 4 12 12 18 12 12 12 maximum torque hard Nm 5 11 12 20 61 95 108 maximum speed 1st speed maximum speed 2nd speed min-1 min-1 0 – 200 0 – 600 0 – 1300 – 0 – 800 – 0 – 1500 – 0 – 550 – 0 – 400 – 0 – 300 – 07 Toolholder E 6.3 ⌀ 1.0 − 10 mm ⌀ 1.5 − 10 mm ⌀ 1.5 − 10 mm Square 1/4 inch Square 3/8 inch Square 1/2 inch Compact drill / Format Right angle drill / driver Ratchet driver maximum twist drill size ⌀ in steel mm 3 10 10 10 – – – maximum twist drill size ⌀ in wood mm 6 10 25 28 – – – Weight kg 0.5 1.2 1.1 1.9 0.9 0.9 1 maximum vibration to EN m/s2 – – < 2.5 < 2.5 <2.5 <2.5 <2.5 typical application Medium Medium Medium Strong Strong Strong Strong 1005
