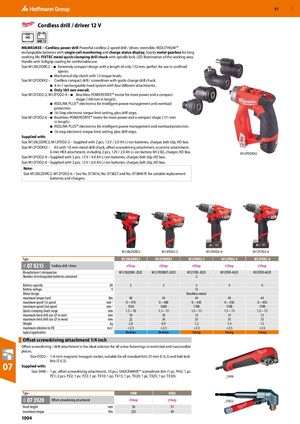

GBP 57 ​ Cordless drill / driver 12 V HD MB 12 MILWAUKEE − Cordless power drill Powerful cordless 2-speed drill / driver, reversible. REDLITHIUM™ rechargeable batteries with single-cell monitoring and charge status display. Sturdy metal gearbox for long working life. FIXTEC metal quick-clamping drill chuck with spindle lock. LED illumination of the working area. Handle with Softgrip coating for comfortable use. Size M12BLDDRC2 – ■ Extremely compact design with a length of only 132 mm, perfect for use in confined spaces. ■ Mechanical slip clutch with 13 torque levels. Size M12FDDXK2 – Cordless compact drill / screwdriver with quick-change drill chuck. ■ 4-in-1 exchangeable head system with four different attachments. ■ Only 185 mm overall. Size M12FDD2-2; M12FDD2-4 – ■ Brushless POWERSTATE™ motor for more power and a compact shape (168 mm in length). ■ REDLINK PLUS™ electronics for intelligent power management and overload protection. ■ 16-Step electronic torque limit setting, plus drill steps. Size M12FDD2-6 – ■ Brushless POWERSTATE™ motor for more power and a compact shape (151 mm in length). ■ REDLINK PLUS™ electronics for intelligent power management and overload protection. ■ 16-step electronic torque limit setting, plus drill steps. Supplied with: Size M12BLDDRC2; M12FDD2-2 – Supplied with 2 pcs. 12 V / 2.0 Ah Li-ion batteries, charger, belt clip, HD box. Size M12FDDXK2 – Kit with 10-mm metal drill chuck, offset screwdriving attachment, eccentric attachment, 6-mm HEX attachment, including 2 pcs. 12V / 2.0 Ah Li-ion battery M12 B2, charger, HD Box. M12FDDXK2 Size M12FDD2-4 – Supplied with 2 pcs. 12 V / 4.0 Ah Li-ion batteries, charger, belt clip, HD box. Size M12FDD2-6 – Supplied with 2 pcs. 12 V / 6.0 Ah Li-ion batteries, charger, belt clip, HD box. Note: Size M12BLDDRC2–M12FDD2-6 – See No. 073816, No. 073827 and No. 073840 ff. for suitable replacement batteries and chargers. M12BLDDRC2 M12FDD2-2 M12FDD2-4 M12FDD2-6 Type M12BLDDRC2 M12FDDXK2 M12FDD2-2 M12FDD2-4 M12FDD2-6 07 0215 Cordless drill / driver eShop eShop eShop eShop eShop 03L Manufacturer‘s designation M12 BLDDRC-202C M12 FDDXKIT-202X M12 FDD-202X M12FDD-402X M12FDD-602X Number of rechargeable batteries contained 2 ​ ​ Battery capacity Ah 2 2 2 4 6 Battery voltage V 12 Motor design Brushless motor maximum torque hard Nm 40 34 44 44 44 maximum speed 1st speed min-1 0 – 470 0 – 400 0 – 450 0 – 450 0 – 450 maximum speed 2nd speed min-1 1550 1600 1700 1700 1700 Quick-clamping chuck range mm 1.5 – 10 1.5 – 13 1.5 – 13 1.5 – 13 1.5 – 13 maximum twist drill size ⌀ in steel mm 10 10 13 13 13 maximum twist drill size ⌀ in wood mm 22 34 35 35 35 Weight kg 2.8 0.9 1.2 1.4 1.5 maximum vibration to EN m/s2 <2.5 <2.5 <2.5 <2.5 <2.5 typical application Medium Medium Strong Strong Strong Offset screwdriving attachment 1/4 inch ​ Offset screwdriving / drill attachment is the ideal solution for all screw fastenings in restricted and inaccessible places. Size OSD2 – 1/4 inch magnetic hexagon socket, suitable for all standard bits 25 mm (C 6.3) and ball-lock bits (E 6.3). 07 Supplied with: Size SHW – 1 pc. offset screwdriving attachment, 10 pcs. SHOCKWAVE™ screwdriver bits (1 pc. PH2; 1 pc. PZ1; 2 pcs. PZ2; 1 pc. PZ3; 1 pc. TX10; 1 pc. TX15; 1 pc. TX20; 1 pc. TX25; 1 pc. TX30). _SHW Type SHW OSD2 07 3920 Offset screwdriving attachment eShop eShop 07A _OSD2 Head height mm 36 51 maximum torque Nm 225 40 1004
