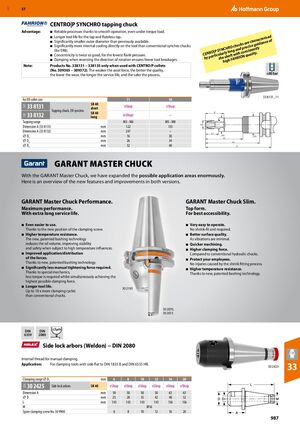

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 987

GBP 57 CENTRO|P SYNCHRO tapping chuck Advantage: ■ Reliable processes thanks to smooth operation, even under torque load. ■ Longer tool life for the tap and fluteless tap. erised ■ Significantly smaller outer diameter than previously available. r e c h aract nce of sa ida ■ Significantly more internal cooling directly on the tool than conventional synchro chucks chuck cise gu (for ER8). S YN CHRO g and pre istently O|P lon ons ■ Concentricity is twice as good, for the lowest flank pressure. CENR rticularly aft with c N quality. ■ Damping when reversing the direction of rotation ensures fewer tool breakages. by pa the shh FAHRIO hig Note: Products No. 338131 – 338135 only when used with CENTRO/P collets (No. 309365 – 309372). The weaker the axial force, the better the quality, the lower the wear, the longer the service life, and the safer the process. ≤80 bar 33 8131_11 for ER collet size 11 16 SK 40 33 8131 eShop eShop 33F short Tapping chuck, ER synchro SK 40 E 33 8132 (eShop) – 33F long Tapping range M3 - M6 M5 - M8 D1 Dimension A (33 8131) mm 122 135 Dimension A (33 8132) mm 247 – L1 ⌀ D1 mm 16 30 D2 L2 D3 ⌀ D2 mm 26 34 L3 ⌀ D3 mm 32 40 A GARANT MASTER CHUCK With the GARANT Master Chuck, we have expanded the possible application areas enormously. Here is an overview of the new features and improvements in both versions. GARANT Master Chuck Performance. GARANT Master Chuck Slim. Maximum performance. Top form. With extra long service life. For best accessibility. ■ Even easier to use. ■ Very easy to operate. Thanks to the new position of the clamping screw. No shrink-fit unit required. ■ Higher temperature resistance. ■ Better surface quality. The new, patented bushing technology As vibrations are minimal. reduces the oil volume, improving stability ■ Quicker machining. and safety when subject to high temperature influences. ■ Higher clamping force. ■ Improved application/distribution Compared to conventional hydraulic chucks. of the forces. ■ Protect your employees. Thanks to new, patented bushing technology. No injuries caused by the shrink fitting process. ■ Significantly less manual tightening force required. ■ Higher temperature resistance. Thanks to special mechanics, Thanks to new, patented bushing technology. less torque is required whilst simultaneously achieving the highest possible clamping force. ■ Longer tool life. 30 2195 Up to 10 x more clamping cycles than conventional chucks. 30 2070, 30 2073 ≤3µm DIN DIN 6359 2080 Side lock arbors (Weldon) − DIN 2080 Internal thread for manual clamping. Application: For clamping tools with side flat to DIN 1835 B and DIN 6535 HB. 30 2425 33 Clamping range ⌀ D1 mm 6 8 10 12 16 20 30 2425 Side lock arbors SK 40 eShop eShop eShop eShop eShop eShop 32A Dimension A mm 50 50 50 50 63 63 ⌀ D mm 25 28 35 42 48 52 L mm 143 143 143 143 156 156 M M16 Spare clamping screw No. 30 9900 6 8 10 12 16 20 987
