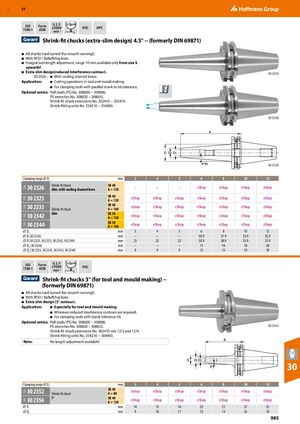

GBP 57 G 2.5 ≤3µm ISO Form 25000 HSC HPC 7388-1 ADB min-1 Shrink-fit chucks (extra-slim design) 4.5° − (formerly DIN 69871) ■ All shanks hard turned (for smooth running!). ■ With RFID / Balluffchip bore. ■ Integral tool length adjustment, range 10 mm available only from size 6 upwards! ■ Extra slim design(reduced interference contour). 30 2325 30 2326 – ■ With cooling channel bores. Application: ■ Cutting operations in tool and mould making. ■ For clamping tools with parallel shank to h6 tolerance. Optional extras: Pull studs (PS) No. 308600 − 308806. PS wrenches No. 308820 – 308835, Shrink-fit chuck extensions No. 302410 − 302419. Shrink-fitting units No. 354210 − 354450. 30 2326 30 2326 Clamping range ⌀ D1 mm 3 4 5 6 8 10 12 Shrink-fit chuck SK 40 30 2326 – – – eShop eShop eShop eShop 31A slim, with cooling channel bore A = 120 SK 40 30 2325 eShop eShop eShop eShop eShop eShop eShop 31A A = 120 SK 40 30 2333 eShop eShop eShop eShop eShop eShop eShop 31A Shrink-fit chuck A = 160 slim SK 50 30 2342 eShop eShop eShop eShop eShop eShop eShop 31A A = 120 SK 50 30 2344 eShop eShop eShop eShop eShop eShop eShop 31A A = 160 ⌀ D1 mm 3 4 5 6 8 10 12 ⌀ D (30 2326) mm – – – 30.9 31.9 33.9 35.9 ⌀ D (30 2325, 30 2333, 30 2342, 30 2344) mm 25 25 25 30.9 30.9 33.9 33.9 ⌀ D2 (30 2326) mm – – – 15 16 18 20 ⌀ D2 (30 2325, 30 2333, 30 2342, 30 2344) mm 9 9 9 15 15 18 18 G 2.5 ≤3µm ISO Form 25000 HSC 7388-1 ADB min-1 Shrink-fit chucks 3° (for tool and mould making) − (formerly DIN 69871) ■ All shanks hard turned (for smooth running!). ■ With RFID / Balluffchip bore. ■ Extra slim design (3° contour). Application: ■ Especially for tool and mould making. ■ Wherever reduced interference contours are required. ■ For clamping tools with shank tolerance h6. Optional extras: Pull studs (PS) No. 308600 − 308806. PS wrenches No. 308820 – 308835. 30 2352 Shrink-fit chuck extensions No. 302410 size 12/3 and 12/4. Shrink-fitting units No. 354210 − 304450. Note: No length adjustment available! 30 Clamping range ⌀ D1 mm 3 4 5 6 8 10 12 SK 40 30 2352 eShop eShop eShop eShop eShop eShop eShop 31A Shrink-fit chuck A = 80 3° SK 40 30 2356 eShop eShop eShop eShop eShop eShop eShop 31A A = 120 ⌀ D mm 14 15 16 23 21 27 25 ⌀ D2 mm 9 10 11 12 14 16 18 985
