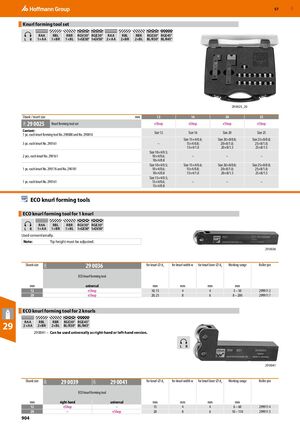

GBP 57 Knurl forming tool set ​ RAA RBL RBR RGV30° RGE30° RAA RBL RBR RGE30° RGE45° L R 1×AA 1×BR 1×BL 1×GE30° 1×GV30° 2×AA 2×BR 2×BL BL/R30° BL/R45° 29 0025_20 Shank / insert size mm 12 16 20 25 29 0025 29H Knurl forming tool set eShop eShop eShop eShop Content: Size 12 Size 16 Size 20 Size 25 1 pc. each knurl forming tool No. 290000 and No. 290010 Size 15×4/0.6; Size 20×8/0.8; Size 25×8/0.8; 3 pc. each knurl No. 290161 – 15×4/0.8; 20×8/1.0; 25×8/1.0; 15×4/1.0 20×8/1.5 25×8/1.5 Size 10×4/0.5; 2 pcs. each knurl No. 290161 10×4/0.6; – – – 10×4/0.8 Size 10×4/0.5; Size 15×4/0.6; Size 20×8/0.8; Size 25×8/0.8; 1 pc. each knurl No. 290176 and No. 290181 10×4/0.6; 15×4/0.8; 20×8/1.0; 25×8/1.0; 10×4/0.8 15×4/1.0 20×8/1.5 25×8/1.5 Size 15×4/0.5; 1 pc. each knurl No. 290161 15×4/0.6; – – – 15×4/0.8 ​ ECO knurl forming tools ECO knurl forming tool for 1 knurl ​ RAA RBL RBR RGV30° RGE30° L R 1×AA 1×BR 1×BL 1×GE30° 1×GV30° Used conventionally. Note: Tip height must be adjusted. 29 0036 Shank size 29 0036 for knurl ⌀ d1 for knurl width w for knurl bore ⌀ d2 Working range Roller pin 29H ECO knurl forming tool mm universal mm mm mm mm ​ 12 eShop 10; 15 4 4 3 – 50 299911 2 20 eShop 20; 25 8 6 8 – 200 299911 7 ECO knurl forming tool for 2 knurls ​ RAA RBL RBR RGE30° RGE45° 29 2×AA 2×BR 2×BL BL/R30° BL/R45° 29 0041 – Can be used universally as right-hand or left-hand version. L R 29 0041 Shank size 29 0039 29 0041 for knurl ⌀ d1 for knurl width w for knurl bore ⌀ d2 Working range Roller pin 29H 29H ECO knurl forming tool mm right-hand universal mm mm mm mm ​ 12 eShop – 15 4 4 6 – 60 299911 4 20 – eShop 20 8 6 10 – 110 299911 3 904
