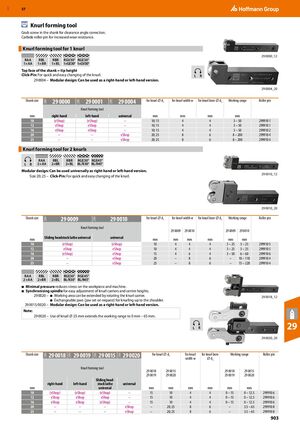

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 903

GBP 57 ​ Knurl forming tool Grub screw in the shank for clearance angle correction. Carbide roller pin for increased wear resistance. Knurl forming tool for 1 knurl ​ 29 0000_12 RAA RBL RBR RGV30° RGE30° 1×AA 1×BR 1×BL 1×GE30° 1×GV30° Top face of the shank = tip height Click-Pin: For quick and easy changing of the knurl. L R 29 0004 – Modular design: Can be used as a right-hand or left-hand version. 29 0004_20 Shank size 29 0000 29 0001 29 0004 for knurl ⌀ d1 for knurl width w for knurl bore ⌀ d2 Working range Roller pin 29H 29H Knurl forming tool 29H mm right-hand left-hand universal mm mm mm mm ​ 10 (eShop) (eShop) – 10; 15 4 4 3 – 50 299910 1 12 eShop eShop – 10; 15 4 4 3 – 50 299910 1 16 eShop eShop – 10; 15 4 4 3 – 50 299910 2 20 – – eShop 20; 25 8 6 8 – 200 299910 4 25 – – eShop 20; 25 8 6 8 – 200 299910 4 Knurl forming tool for 2 knurls ​ RAA RBL RBR RGE30° RGE45° L R 2×AA 2×BR 2×BL BL/R30° BL/R45° Modular design: Can be used universally as right-hand or left-hand version. 29 0010_12 Size 20; 25 – Click-Pin: For quick and easy changing of the knurl. 29 0010_20 Shank size 29 0009 29 0010 for knurl ⌀ d1 for knurl width w for knurl bore ⌀ d2 Working range Roller pin 29H 29H Knurl forming tool ​ 29 0009 29 0010 29 0009 29 0010 ​ Sliding headstock lathe universal universal mm mm mm mm mm mm mm ​ 10 (eShop) (eShop) 10 4 4 4 3 – 25 3 – 25 299910 5 12 eShop eShop 10 4 4 4 3 – 25 3 – 25 299910 5 16 (eShop) eShop 15 4 6 4 3 – 50 6 – 60 299910 6 20 – eShop 20 – 8 6 – 10 – 110 299910 4 25 – eShop 25 – 8 6 – 15 – 220 299910 4 RAA RBL RBR RGE30° RGE45° 2×AA 2×BR 2×BL BL/R30° BL/R45° ■ Minimal pressure reduces stress on the workpiece and machine. ■ Synchronising spindle for easy adjustment of knurl carriers and centre heights. 29 0020 – ■ Working area can be extended by rotating the knurl carrier. 29 0018_12 ■ Exchangeable jaws (jaw set on request) for knurling up to the shoulder. 29 0015/0020 – Modular design: Can be used as a right-hand or left-hand version. Note: 29 0020 – Use of knurl ⌀ 25 mm extends the working range to 0 mm – 65 mm. L R 29 29 0020_20 Shank size 29 0018 29 0019 29 0015 29 0020 for knurl ⌀ d1 for knurl for knurl bore Working range Roller pin 29H 29H 29H 29H width w ⌀ d2 Knurl forming tool 29 0018 29 0015 29 0018 29 0015 ​ 29 0019 29 0020 29 0019 29 0020 Sliding head- right-hand left-hand stock lathe universal mm universal mm mm mm mm mm mm ​ 10 (eShop) (eShop) (eShop) – 15 10 4 4 0 – 15 0 – 12.5 299910 6 12 eShop eShop eShop – 15 10 4 4 0 – 15 0 – 12.5 299910 6 16 eShop eShop (eShop) – 15 10 4 4 0 – 15 0 – 12.5 299910 6 20 – – – eShop – 20; 25 8 6 – 3.5 – 65 299910 8 25 – – – eShop – 20; 25 8 6 – 3.5 – 65 299910 8 903
