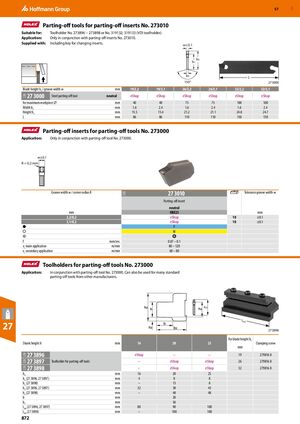

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 872

GBP 57 ​ Parting-off tools for parting-off inserts No. 273010 Suitable for: Toolholder No. 273896 − 273898 or No. 319132; 319133 (VDI toolholder). Application: Only in conjunction with parting-off inserts No. 273010. Supplied with: Including key for changing inserts. w±0.1 h5 h1 b2 L 150° 27 3000 Blade height h5 / groove width w mm 19/2,2 19/3,1 26/2,2 26/3,1 32/2,2 32/3,1 27 3000 Steel parting-off tool neutral eShop eShop eShop eShop eShop eShop 22B for maximum workpiece ⌀ mm 40 40 75 75 100 100 Width b2 mm 1.6 2.4 1.6 2.4 1.6 2.4 Height h1 mm 15.5 15.4 21.2 21.1 24.8 24.7 L mm 86 86 110 110 150 150 ​ Parting-off inserts for parting-off tools No. 273000 Application: Only in conjunction with parting-off tool No. 273000. w±0.1 R = 0,2 mm R Groove width w / corner radius R 27 3010 Tolerance groove width w 22D Parting-off insert neutral mm HBX25 mm 2,2/0,2 eShop 10 ±0.1 3,1/0,2 eShop 10 ±0.1 P M f mm/rev. 0.07 – 0.1 ​ ​ vc main application m/min 80 – 120 ​ ​ vc secondary application m/min 60 – 80 ​ ​ ​ Toolholders for parting-off tools No. 273000 Application: In conjunction with parting-off tool No. 273000. Can also be used for many standard parting-off tools from other manufacturers. h5 Ltot 27 27 3896 For blade height h5 Shank height h mm 16 20 25 Clamping screw mm 27 3896 eShop – – 19 279816 8 22B 22B 22B 27 3897 Toolholder for parting-off tools – eShop eShop 26 279816 8 27 3898 – eShop eShop 32 279816 8 h4 mm 16 20 25 ​ ​ h2 (27 3896, 27 3897) mm 4 8 8 ​ ​ h2 (27 3898) mm – 13 8 ​ ​ h3 (27 3896, 27 3897) mm 32 38 43 ​ ​ h3 (27 3898) mm – 48 48 ​ ​ b mm 20 ​ ​ b3 mm 36 ​ ​ Ltot (27 3896, 27 3897) mm 80 90 100 ​ ​ Ltot (27 3898) mm – 100 100 ​ ​ 872
