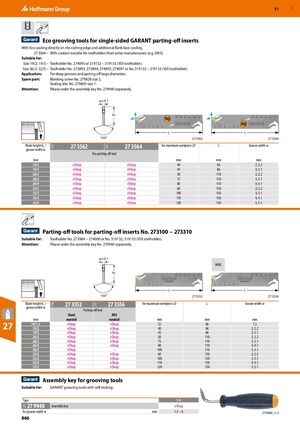

GBP 57 Eco grooving tools for single-sided GARANT parting-off inserts With Eco cooling directly on the cutting edge and additional flank face cooling. 27 3564 – With coolant transfer for toolholders from other manufacturers (e.g. EWS). Suitable for: Size 19/2; 19/3 – Toolholder No. 274093 or 319132 – 319133 (VDI toolholder). Size 26/2–32/5 – Toolholder No. 273893; 273894; 274095; 274097 or No. 319132 – 319133 (VDI toolholder). Application: For deep grooves and parting off large diameters. Spare part: Blanking screw No. 279828 size 2. Sealing disc No. 279830 size 1. Attention: Please order the assembly key No. 279940 separately. w±0.1 h5 L L 150° 27 3562 27 3564 Blade height h5 / 27 3562 27 3564 for maximum workpiece ⌀ L Groove width w 21U 21U groove width w Eco parting-off tool mm mm mm mm 19/2 eShop eShop 40 86 2; 2.2 19/3 eShop eShop 45 86 3; 3.1 26/2 eShop eShop 50 110 2; 2.2 26/3 eShop eShop 75 110 3; 3.1 26/4 eShop eShop 80 110 4; 4.1 32/2 eShop eShop 60 150 2; 2.2 32/3 eShop eShop 100 150 3; 3.1 32/4 eShop eShop 110 150 4; 4.1 32/5 eShop eShop 120 150 5; 5.1 Parting-off tools for parting-off inserts No. 273100 − 273310 Suitable for: Toolholder No. 273984 − 274000 or No. 319132; 319133 (VDI toolholder). Attention: Please order the assembly key No. 279940 separately. w±0.1 HSS h5 L L 150° 27 3552 27 3556 Blade height h5 / 27 3552 27 3556 for maximum workpiece ⌀ L Groove width w 21W 21U groove width w Parting-off tool Steel HSS mm neutral neutral mm mm mm 27 19/1,5 19/2 19/3 eShop eShop eShop eShop eShop eShop 32 40 45 86 86 86 1.5 2; 2.2 3; 3.1 26/2 eShop eShop 50 110 2; 2.2 26/3 eShop eShop 75 110 3; 3.1 26/4 eShop eShop 80 110 4; 4.1 26/5 eShop – 100 110 5; 5.1 32/2 eShop eShop 60 150 2; 2.2 32/3 eShop eShop 100 150 3; 3.1 32/4 eShop eShop 110 150 4; 4.1 32/5 eShop eShop 120 150 5; 5.1 ​ Assembly key for grooving tools Suitable for: GARANT grooving tools with self-locking. Type 1-3 27 9940 Assembly key eShop 29Y for groove width w mm 1.5 – 8 27 9940_1-3 866
