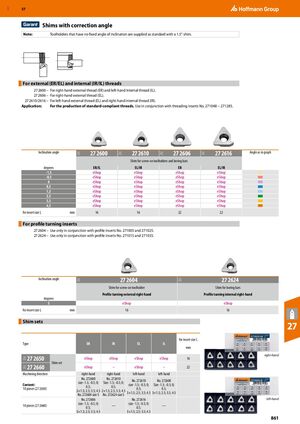

GBP 57 ​ Shims with correction angle Note: Toolholders that have no fixed angle of inclination are supplied as standard with a 1.5° shim. For external (ER/EL) and internal (IR/IL) threads ​ 27 2600 – For right-hand external thread (ER) and left-hand internal thread (IL). 27 2606 – For right-hand external thread (EL). 27 2610/2616 – For left-hand external thread (EL) and right-hand internal thread (IR). Application: For the production of standard-compliant threads. Use in conjunction with threading inserts No. 271048 − 271285. Inclination angle 27 2600 27 2610 27 2606 27 2616 Angle as in graph 21J 21J 21J 21J Shim for screw-on toolholders and boring bars degrees ER/IL EL/IR ER EL/IR -1,5 eShop eShop eShop eShop ​ -0,5 eShop eShop eShop eShop ​ 0 eShop eShop eShop eShop ​ 0,5 eShop eShop eShop eShop ​ 1,5 eShop eShop eShop eShop ​ 2,5 eShop eShop eShop eShop ​ 3,5 eShop eShop eShop eShop ​ 4,5 eShop eShop eShop eShop ​ for insert size L mm 16 16 22 22 ​ For profile turning inserts ​ 27 2604 – Use only in conjunction with profile inserts No. 271005 and 271025. 27 2624 – Use only in conjunction with profile inserts No. 271015 and 271035. Inclination angle 27 2604 27 2624 21J 21J Shim for screw-on toolholder Shim for boring bars Profile turning external right-hand Profile turning internal right-hand degrees S eShop eShop for insert size L mm 16 16 Shim sets ​ 27 for insert size L Type ER IR EL IL mm right-hand 27 2650 eShop eShop eShop eShop 16 21J Shim set 27 2660 eShop – eShop – 22 21J Machining direction right-hand right-hand left-hand left-hand ​ No. 272600 No. 272610 No. 272610 No. 272600 size -1.5; -0.5; 0; Size -1.5; -0.5; 0; size -1.5; -0.5; 0; Size -1.5; Content: -0.5; 0; 0.5; 0.5; 10 pieces (27 2650) 0.5; 0.5; 2×1.5; 2.5; 3.5; 4.5 2×1.5; 2.5; 3.5; 4.5 3×1.5; 2.5; 3.5; 4.5 3×1.5; 2.5; 3.5; 4.5 No. 272604 size S No. 272624 size S No. 272606 No. 272616 left-hand size -1.5; -0.5; 0; size -1.5; -0.5; 0; 10 pieces (27 2660) — — 0.5; 0.5; 3×1.5; 2.5; 3.5; 4.5 3×1.5; 2.5; 3.5; 4.5 861
