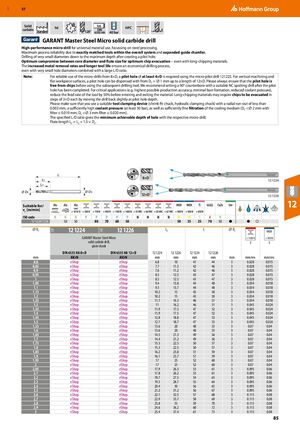

GBP 57 Solid h6 h6 HPC carbide Standard 2 DIN x 128° 6535 HA 40 bar GARANT Master Steel Micro solid carbide drill High-performance micro-drill for universal material use, focussing on steel processing. Maximum process reliability due to exactly matched tools within the overall system and expanded guide chamfer. Drilling of very small diameters down to the maximum depth after creating a pilot hole. Optimum compromise between core diameter and flute size for optimum chip evacuation – even with long-chipping materials. The increased metal removal rates and longer tool life ensure an economical drilling process, even with very small hole diameters combined with a large L/D ratio. Note: For reliable use of the micro-drills from 8×D, a pilot hole of at least 4×D is required using the micro-pilot drill 121223. For vertical machining and flat workpiece surfaces, a pilot hole can be dispensed with from DC = ⌀ 1 mm up to a length of 12×D. Please always ensure that the pilot hole is free from chips before using the subsequent drilling tool. We recommend setting a 90° counterbore with a suitable NC spotting drill after the pilot hole has been completed. For critical applications (e.g. highest possible production accuracy, minimal burr formation, reduced coolant pressure), reduce the feed rate of the tool by 50% before entering and exiting the material. Long-chipping materials may require chips to be evacuated in steps of 3×D each by moving the drill back slightly at pilot hole depth. Please make sure that you use a suitable tool clamping device (shrink-fit chuck, hydraulic clamping chuck) with a radial run-out of less than 0.003 mm, a sufficiently high coolant pressure (at least 30 bar), as well as sufficiently fine filtration of the cooling medium (DC <⌀ 2 mm with filter ≤ 0.010 mm; DC <⌀ 3 mm filter ≤ 0.020 mm). The specified L/D ratio gives the minimum achievable depth of hole with the respective micro-drill. Flute length LC = L2 + 1.5 × DC. L 8×D LC ​ 12 1224 L2 ⌀ DC ⌀ DS 12×D ​ 12 1226 Suitable for/ vc [m/min] 12 ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 12 1224/​1226 50 50 80 70 60 50 50 35 25 70 50 ● ● ○ ⌀ DC 12 1224 12 1226 L2 L ⌀ Ds 10F 10F INOX GARANT Master Steel Micro < 1100 N < 900 N solid carbide drill, f f plain shank DIN 6535 HA 8×D DIN 6535 HA 12×D 12 1224 12 1226 12 1224 12 1226 ​ ​ ​ mm AlCrN AlCrN mm mm mm mm mm mm/rev. mm/rev. 0,8 eShop eShop 6.8 10 41 44 3 0.028 0.015 0,85 eShop eShop 7.7 11.3 42 46 3 0.028 0.015 0,9 eShop eShop 7.6 11.2 42 46 3 0.028 0.015 0,95 eShop eShop 8.5 12.5 43 47 3 0.028 0.015 1 eShop eShop 8.5 12.5 43 47 3 0.028 0.015 1,05 eShop eShop 9.4 13.8 44 48 3 0.034 0.018 1,1 eShop eShop 9.3 13.7 44 48 3 0.034 0.018 1,15 eShop eShop 10.2 15 45 50 3 0.034 0.018 1,2 eShop eShop 10.2 15 45 50 3 0.034 0.018 1,25 eShop eShop 11.1 16.3 46 51 3 0.034 0.018 1,3 eShop eShop 11 16.2 46 51 3 0.045 0.024 1,35 eShop eShop 11.9 17.5 47 52 3 0.045 0.024 1,4 eShop eShop 11.9 17.5 47 52 3 0.045 0.024 1,45 eShop eShop 12.8 18.8 47 53 3 0.045 0.024 1,5 eShop eShop 12.7 18.7 47 53 3 0.045 0.024 1,55 eShop eShop 13.6 20 48 55 3 0.07 0.04 1,6 eShop eShop 13.6 20 48 55 3 0.07 0.04 1,65 eShop eShop 14.5 21.3 49 56 3 0.07 0.04 1,7 eShop eShop 14.4 21.2 49 56 3 0.07 0.04 1,75 eShop eShop 15.3 22.5 50 57 3 0.07 0.04 1,8 eShop eShop 15.3 22.5 50 57 3 0.07 0.04 1,85 eShop eShop 16.2 23.8 51 59 3 0.07 0.04 1,9 eShop eShop 16.1 23.7 51 59 3 0.07 0.04 1,95 eShop eShop 17 25 52 60 3 0.07 0.04 2 eShop eShop 17 25 52 60 3 0.07 0.04 2,05 eShop eShop 17.9 26.3 53 61 3 0.095 0.06 2,1 eShop eShop 17.8 26.2 53 61 3 0.095 0.06 2,2 eShop eShop 18.7 27.5 54 63 3 0.095 0.06 2,3 eShop eShop 19.5 28.7 55 64 3 0.095 0.06 2,4 eShop eShop 20.4 30 56 65 3 0.095 0.06 2,5 eShop eShop 21.2 31.2 56 67 3 0.095 0.06 2,6 eShop eShop 22.1 32.5 57 68 3 0.115 0.08 2,7 eShop eShop 22.9 33.7 58 69 3 0.115 0.08 2,8 eShop eShop 23.8 35 59 70 3 0.115 0.08 2,9 eShop eShop 24.6 36.2 60 72 3 0.115 0.08 3 eShop eShop 25.4 37.4 61 73 3 0.115 0.08 85
