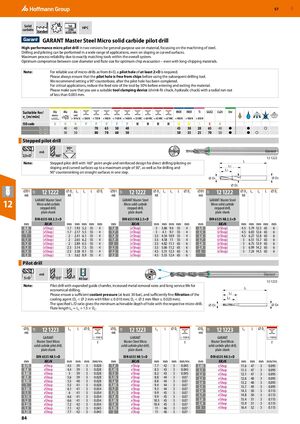

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 84

GBP 57 Solid h6 HPC carbide Standard 2 DIN 6535 HA GARANT Master Steel Micro solid carbide pilot drill High-performance micro pilot drill in two versions for general-purpose use on material, focussing on the machining of steel. Drilling and piloting can be performed in a wide range of applications, even on sloping or curved surfaces. Maximum process reliability due to exactly matching tools within the overall system. Optimum compromise between core diameter and flute size for optimum chip evacuation – even with long-chipping materials. Note: For reliable use of micro-drills as from 8×D, a pilot hole of at least 2×D is required. Please always ensure that the pilot hole is free from chips before using the subsequent drilling tool. We recommend setting a 90° counterbore, after the pilot hole has been completed. For critical applications, reduce the feed rate of the tool by 50% before entering and exiting the material. Please make sure that you use a suitable tool clamping device (shrink-fit chuck, hydraulic chuck) with a radial run-out of less than 0.003 mm. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 12 1222 40 40 70 65 50 40 45 30 20 65 40 ● ● ○ 12 1223 50 50 80 70 60 50 50 35 25 70 50 ● ● ○ Stepped pilot drill ​ 90º m6 2,5×D 160° 12 1222 L Note: Stepped pilot drill with 160° point angle and reinforced design for direct drilling/piloting on LC sloping and curved surfaces up to a maximum angle of 50°, as well as for drilling and L1 90° countersinking on straight surfaces in one step. ⌀ D1 ⌀ DS ⌀ D2 ⌀D1 12 1222 ⌀ D2 L1 Lc L ⌀ Ds ⌀D1 12 1222 ⌀ D2 L1 Lc L ⌀ Ds ⌀D1 12 1222 ⌀ D2 L1 Lc L ⌀ Ds 10F 10F 10F m6 h8 m6 h8 m6 h8 GARANT Master Steel GARANT Master Steel GARANT Master Steel 12 Micro solid carbide stepped drill, Micro solid carbide stepped drill, Micro solid carbide stepped drill, plain shank plain shank plain shank DIN 6535 HA 2.5×D DIN 6535 HA 2.5×D DIN 6535 HA 2.5×D mm AlCrN mm mm mm mm mm mm AlCrN mm mm mm mm mm mm AlCrN mm mm mm mm mm 0,8 (eShop) 1.7 1.93 5.2 55 4 1,6 (eShop) 3 3.86 9.4 55 4 2,4 (eShop) 4.5 5.79 12.5 65 6 0,9 (eShop) 1.7 2.17 5.5 55 4 1,7 (eShop) 3 4.1 9.7 55 4 2,5 (eShop) 4.5 6.03 12.6 65 6 1 (eShop) 2 2.41 6.1 55 4 1,8 (eShop) 3.5 4.34 10.9 55 4 2,6 (eShop) 4.5 6.27 12.8 65 6 1,1 (eShop) 2 2.65 6.2 55 4 1,9 (eShop) 3.5 4.58 11 55 4 2,7 (eShop) 5 6.51 13.7 65 6 1,2 (eShop) 2 2.89 6.5 55 4 2 (eShop) 3.5 4.82 11.1 65 6 2,8 (eShop) 5 6.75 13.9 65 6 1,3 (eShop) 2.5 3.14 7.5 55 4 2,1 (eShop) 3.5 5.06 11.2 65 6 2,9 (eShop) 5 6.99 14.2 65 6 1,4 (eShop) 2.5 3.38 8.1 55 4 2,2 (eShop) 4.5 5.31 12.3 65 6 3 (eShop) 5 7.24 14.5 65 6 1,5 (eShop) 3 3.62 8.9 55 4 2,3 (eShop) 4.5 5.55 12.4 65 6 ​ ​ ​ ​ ​ ​ ​ Pilot drill ​ m6 x 5×D 135° 40 bar 12 1223 Note: Pilot drill with expanded guide chamfer, increased metal removal rates and long service life for L economical drilling. Please ensure a sufficient coolant pressure (at least 30 bar), and sufficiently fine filtration of the LC cooling agent (DC < ⌀ 2 mm with filter ≤ 0.010 mm; DC < ⌀ 3 mm filter ≤ 0.020 mm). L2 The specified L/D ratio gives the minimum achievable depth of hole with the respective micro-drill. ⌀ DC ⌀ DS Flute length LC = L2 + 1.5 × DC. ⌀DC 12 1223 L2 L ⌀ Ds ⌀DC 12 1223 L2 L ⌀ Ds ⌀DC 12 1223 L2 L ⌀ Ds 10F 10F 10F m6 m6 m6 GARANT < 1100 N GARANT < 1100 N GARANT < 1100 N Master Steel Micro f Master Steel Micro f Master Steel Micro f solid carbide pilot drill, solid carbide pilot drill, solid carbide pilot drill, plain shank plain shank plain shank DIN 6535 HA 5×D DIN 6535 HA 5×D DIN 6535 HA 5×D mm AlCrN mm mm mm mm/rev. mm AlCrN mm mm mm mm/rev. mm AlCrN mm mm mm mm/rev. 0,75 eShop 4.5 39 3 0.028 1,4 eShop 7.7 42 3 0.045 2,05 eShop 11.6 47 3 0.095 0,8 eShop 4.4 39 3 0.028 1,45 eShop 8.3 43 3 0.045 2,1 eShop 11.5 47 3 0.095 0,85 eShop 5 39 3 0.028 1,5 eShop 8.2 43 3 0.045 2,2 eShop 12.1 47 3 0.095 0,9 eShop 5.6 39 3 0.028 1,55 eShop 8.8 44 3 0.07 2,3 eShop 12.6 48 3 0.095 0,95 eShop 5.5 40 3 0.028 1,6 eShop 8.8 44 3 0.07 2,4 eShop 13.2 48 3 0.095 1 eShop 5.5 41 3 0.028 1,65 eShop 9.4 44 3 0.07 2,5 eShop 13.7 49 3 0.095 1,05 eShop 6.1 41 3 0.034 1,7 eShop 9.3 44 3 0.07 1,1 eShop 6 41 3 0.034 1,75 eShop 9.9 45 3 0.07 2,6 eShop 14.3 50 3 0.115 1,15 eShop 6.6 41 3 0.034 1,8 eShop 9.9 45 3 0.07 2,7 eShop 14.8 50 3 0.115 1,2 eShop 6.6 41 3 0.034 1,85 eShop 10.5 45 3 0.07 2,8 eShop 15.4 51 3 0.115 1,25 eShop 7.2 42 3 0.034 1,9 eShop 10.4 45 3 0.07 2,9 eShop 15.9 51 3 0.115 1,3 eShop 7.1 42 3 0.045 1,95 eShop 11 46 3 0.07 3 eShop 16.4 52 3 0.115 1,35 eShop 7.7 42 3 0.045 2 eShop 11 46 3 0.07 ​ ​ ​ ​ ​ ​ 84
