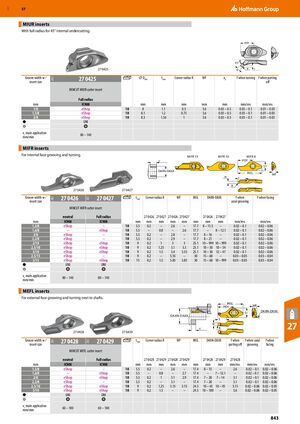

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 843

Предыдущая страница Следующая страница

Навигация

MIUR inserts

With full radius for 45° internal undercutting.

PDY

45°

27 0425 w R t

Groove width w /27 0425⌀ DtCorner radius RWFaf when turning f when parting
insert sizeminmaxpoff

MINCUT MIUR cutter insert Full radius

mmIC908mmmmmmmmmmmm/rev.mm/rev.
1/8eShop1081.10.53.60.03 – 0.50.03 – 0.10.01 – 0.03
1,5/8eShop108.11.20.753.60.03 – 0.50.03 – 0.10.01 – 0.03
2/8eShop108.31.3613.60.03 – 0.50.03 – 0.10.01 – 0.03

UNI v main application c 80 – 140 mm/min

MIFR inserts

For internal face grooving and turning.

MIFR 15 MIFR 10 MIFR 8

t PDY S1 DAXN-DAXX INSL WF w t R 27 0426 27 0427

Groove width w / 27 0426 27 0427 t Corner radius R WF INSL DAXN-DAXX f when f when facing

insert size max axial grooving

MINCUT MIFR cutter insert

neutral Full radius 27 0426 27 0427 27 0426 27 0427 27 0426 27 0427

mmIC908IC908mmmmmmmmmmmmmmmmmm/rev.mm/rev.
1,5/8eShop–105.50.2–2.6–17.7 8 – 11.5–0.02 – 0.10.02 – 0.06
1,6/8–eShop105.5–0.8–2.617.7–8 – 12.10.02 – 0.10.02 – 0.06
2/8eShop–105.50.2–2.8–17.78 – 16–0.02 – 0.10.02 – 0.06
2,2/8eShop–105.50.2–2.9–17.78 – 21–0.02 – 0.10.02 – 0.06
2/10eShopeShop1090.213325.1 10 – 999 10 – 9990.02 – 0.10.02 – 0.06
2,5/10eShopeShop1090.21.253.13.325.110 – 30 10 – 340.02 – 0.10.02 – 0.06
3/10eShopeShop1090.21.53.45.5525.110 – 30 12 – 470.02 – 0.10.02 – 0.06
2,5/15eShop–1090.2–5.55–3015 – 60–0.03 – 0.050.03 – 0.04
3/15eShopeShop10150.21.55.855.853015 – 60 10 – 9990.03 – 0.050.03 – 0.04

UNI UNI v main application

c 80 – 140 80 – 140

mm/min

MEFL inserts

For external face grooving and turning next to shafts. INSL PDY WF DAXN-DAXX S1 DAXN-DAXX t 27 w t R 27 0428 27 0429

Groove width w /27 042827 0429tCorner radius RWFINSLDAXN-DAXXf whenf when axialf when
insert sizemaxparting offgroovingfacing

MINCUT MEFL cutter insert

neutral Full radius 27 0428 27 0429 27 0428 27 0429 27 0428 27 0429 27 0428

mmIC908IC908mmmmmmmmmmmmmmmmmm/rev.mm/rev. mm/rev.
1,5/8eShop–105.50.2–2.6–17.48 – 15–2.60.02 – 0.1 0.02 – 0.06
1,6/8–eShop105.5–0.8–2.717.4–7 – 12.1–0.02 – 0.1 0.02 – 0.06
2/8eShopeShop105.50.213.12.917.47 – 207 – 143.10.02 – 0.1 0.02 – 0.06
2,2/8eShop–105.50.2–3.1–17.47 – 20–3.10.02 – 0.1 0.02 – 0.06
2,5/10eShopeShop1090.21.253.153.1524.510 – 45 10 – 453.150.02 – 0.06 0.02 – 0.05
3/10eShopeShop1090.21.5––24.5 10 – 100–3.60.02 – 0.06 0.02 – 0.05

c 60 – 180 60 – 180

mm/min
