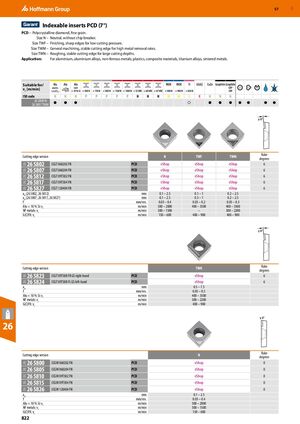

Indexable inserts PCD (7°)

PCD − Polycrystalline diamond, fine grain. Size N – Neutral, without chip breaker. Size TWF – Finishing, sharp edges for low cutting pressure. Size TWM – General machining, stable cutting edge for high metal removal rates. Size TWN – Roughing, stable cutting edge for large cutting depths.

Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals.

Suitable for/ v [m/min] c

ISO code N N N P P P P P H H H M M S K N N N

26 5800 N–

26 5897 TWM

Rake

Cutting edge version N TWF TWM

degrees

26 5802CCGT 060202 FNPCDeShopeShopeShop6
26 5807CCGT 060204 FNPCDeShopeShopeShop6
26 5812CCGT 09T302 FNPCDeShopeShopeShop6
26 5817CCGT 09T304 FNPCDeShopeShopeShop6
26 5827CCGT 120404 FNPCDeShopeShopeShop6
a (26 5802, 26 5812)mm0.1 – 2.50.1 – 10.2 – 2.5
ap (26 5807, 26 5817, 26 5827)mm0.1 – 2.50.3 – 10.2 – 2.5
f pmm/rev.0.03 – 0.40.03 – 0.20.05 – 0.3
Alu < 10 % Si: vm/min300 – 2000400 – 3500400 – 3500

c

NF metals: vm/min300 – 1500–300 – 2200
G(C)FK: vcm/min150 – 600400 – 900400 – 900

c

Rake Cutting edge version TWN degrees

26 5823CCGT 09T308 FR GS right-handPCDeShop6
26 5824CCGT 09T308 FL GS left-handPCDeShop6

a mm 0.5 – 7.5

p

fmm/rev.0.05 – 0.5
Alu < 10 % Si: vm/min400 – 3500
NF metals: vcm/min300 – 2200
G(C)FK: vcm/min400 – 900

c 26 °

Rake Cutting edge version N degrees

26 5800CCGW 060202 FNPCDeShop0
26 5805CCGW 060204 FNPCDeShop0
26 5810CCGW 09T302 FNPCDeShop0
26 5815CCGW 09T304 FNPCDeShop0
26 5826CCGW 120404 FNPCDeShop0
Alu < 10 % Si: vm/min300 – 2000
NF metals: vcm/min300 – 1500
G(C)FK: vcm/min150 – 600
