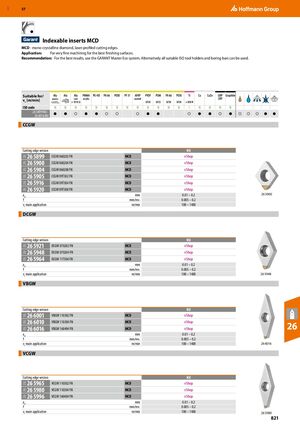

Indexable inserts MCD

MCD - mono-crystalline diamond, laser-profiled cutting edges.

Application: For very fine machining for the best finishing surfaces.

Recommendation: For the best results, use the GARANT Master Eco system. Alternatively all suitable ISO tool holders and boring bars can be used.

Suitable for/ v [m/min] c

ISO code N N N N N N N N N N N N N S N N N N

26 5899 NU–

26 6016 NU

CCGW

Cutting edge version NU

26 5899CCGW 060202 FNMCDeShop
26 5900CCGW 060204 FNMCDeShop
26 5904CCGW 060208 FNMCDeShop
26 5905CCGW 09T302 FNMCDeShop
26 5916CCGW 09T304 FNMCDeShop
26 5920CCGW 09T308 FNMCDeShop

a mm 0.01 – 0.2 26 5900

p

fmm/rev.0.005 – 0.2
v main applicationm/min100 – 1400

c

DCGW

Cutting edge version NU

26 5921DCGW 070202 FNMCDeShop
26 5948DCGW 070204 FNMCDeShop
26 5964DCGW 11T304 FNMCDeShop

a mm 0.01 – 0.2

p

fmm/rev.0.005 – 0.2
v main applicationm/min100 – 140026 5948

c

VBGW

Cutting edge version NU

26 6001VBGW 110302 FNMCDeShop
26 6010VBGW 110304 FNMCDeShop26
26 6016VBGW 160404 FNMCDeShop

a mm 0.01 – 0.2

p

fmm/rev.0.005 – 0.2
v main applicationm/min100 – 140026 6016

c

VCGW

Cutting edge version NU

26 5965VCGW 110302 FNMCDeShop
26 5980VCGW 110304 FNMCDeShop
26 5996VCGW 160404 FNMCDeShop

v main application m/min 100 – 1400 26 5980
