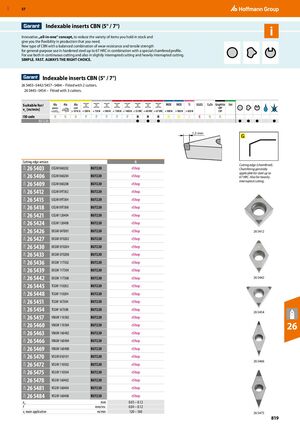

Indexable inserts CBN (5° / 7°)

Innovative „all-in-one“ concept, to reduce the variety of items you hold in stock and give you the flexibility in production that you need. New type of CBN with a balanced combination of wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special chamfered profile. For use both in continuous cutting and also in slightly interrupted cutting and heavily interrupted cutting. SIMPLE. FAST. ALWAYS THE RIGHT CHOICE.

Indexable inserts CBN (5° / 7°)

26 5403–5442/5457–5484 – Fitted with 2 cutters. 26 5445–5454 – Fitted with 3 cutters.

Suitable for/ v [m/min] c

ISO code N N N P P P P P H H H M M S K N N

BU7220 ● ● ● ● ● ● ●

1,5 mm

Cutting edge version G 26 5403 Cutting edge (chamfered).

CCGW 060202 BU7220 eShop Chamfering generally

26 5406 applicable for steel up to

CCGW 060204 BU7220 eShop 67 HRC. Also for heavily

26 5409 interrupted cutting.

CCGW 060208BU7220eShop
26 5412CCGW 09T302BU7220eShop
26 5415CCGW 09T304BU7220eShop
26 5418CCGW 09T308BU7220eShop
26 5421CCGW 120404BU7220eShop
26 5424CCGW 120408BU7220eShop
26 5426DCGW 04T001BU7220eShop

26 5412

26 5427DCGW 070202BU7220eShop
26 5430DCGW 070204BU7220eShop
26 5433DCGW 070208BU7220eShop
26 5436DCGW 11T302BU7220eShop
26 5439DCGW 11T304BU7220eShop
26 5442DCGW 11T308BU722026 5442 eShop
26 5445TCGW 110202BU7220eShop
26 5448TCGW 110204BU7220eShop
26 5451TCGW 16T304BU7220eShop
26 5454TCGW 16T308BU7220eShop

26 5454

26 5457 VBGW 110302 BU7220 eShop

26 5460 26

VBGW 110304BU7220eShop
26 5463VBGW 160402BU7220eShop
26 5466VBGW 160404BU7220eShop
26 5469VBGW 160408BU7220eShop
26 5470VCGW 050101BU7220eShop

26 5472 26 5466

VCGW 110302BU7220eShop
26 5475VCGW 110304BU7220eShop
26 5478VCGW 160402BU7220eShop
26 5481VCGW 160404BU7220eShop
26 5484VCGW 160408BU7220eShop

v main application m/min 120 – 160 26 5475
