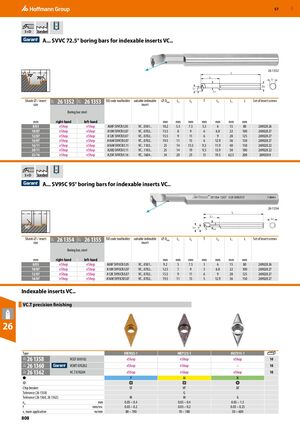

A... SVVC 72.5° boring bars for indexable inserts VC..

26 1352 70° 70° L L L2 Ds L T L

Shank ⌀ / insert26 135226 1353ISO code toolholder suitable indexable⌀ DLLTLLLSet of insert screws
sizeinsertmin3241

Boring bar steel

mmright-handleft-handmmmmmmmmmmmmmm
8/05eShopeShopA08F SVVCR/L05VC.. 0501..10.25.57.53,561580269028 26
10/07eShopeShopA10H SVVCR/L07VC.. 0702..13.58966.822100269028 27
12/07eShopeShopA12K SVVCR/L07VC.. 0702..15.59116928125269028 27
16/07eShopeShopA16M SVVCR/L07VC.. 0702..19.51115612.936150269028 27
16/11eShopeShopA16M SVVCR/L11VC.. 1103..231415.59,511.940150269028 22
20/11eShopeShopA20Q SVVCR/L11VC.. 1103..2514199,513.950180269028 22
25/16eShopeShopA25R SVVCR/L16VC.. 1604..3420231319.562.5200269028 8

3×D Standard A... SV95C 95° boring bars for indexable inserts VC..

26 1354 L L 1 L 2 50° L

3 T L

4

Shank ⌀ / insert26 135426 1355ISO code toolholder suitable indexable⌀ DLLTLLLSet of insert screws
sizeinsertmin3241

Boring bar, steel

mmright-handleft-handmmmmmmmmmmmmmm
8/05eShopeShopA08F SV95CR/L05VC.. 0501..9.257.5361580269028 26
10/07eShopeShopA10H SV95CR/L07VC.. 0702..12.57956.822100269028 27
12/07eShopeShopA12K SV95CR/L07VC.. 0702..15.59116928125269028 27
16/07eShopeShopA16M SV95CR/L07VC.. 0702..19.51115512.936150269028 27

Indexable inserts VC..

VC.T precision finishing

26

TypeHB7025-1HB7125-1HU7315-1
26 1358VCGT 050102eShopeShopeShop10
26 1360VCMT 070202eShopeShop–10
26 1362VC.T 070204eShopeShopeShop10
PMN
Chip breakerSFVFAF

Tolerance (26 1358) G

Tolerance (26 1360, 26 1362) M M G

amm0.05 – 0.40.05 – 0.40.05 – 1.5
fmm/rev.0.03 – 0.20.03 – 0.20.03 – 0.25
