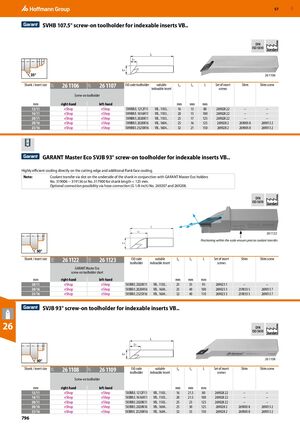

SVHB 107.5° screw-on toolholder for indexable inserts VB..
DIN ISO 5610 Standard L L1
L4 35° 26 1106
| Shank / insert size | 26 1106 | 26 1107 | ISO code toolholder | suitable | L | L | L | Set of insert | Shim | Shim screw | |
| indexable insert | 4 | 1 | screws |
Screw-on toolholder
| mm | right-hand | left-hand | mm | mm | mm | |||||||
| 12/11 | eShop | eShop | SVHBR/L 1212F11 | VB.. 1103.. | 16 | 13 | 80 | 269028 22 | – | – | ||
| 16/11 | eShop | eShop | SVHBR/L 1616H11 | VB.. 1103.. | 20 | 13 | 100 | 269028 22 | – | – | ||
| 20/11 | eShop | eShop | SVHBR/L 2020K11 | VB.. 1103.. | 25 | 17 | 125 | 269028 22 | – | – | ||
| 20/16 | eShop | eShop | SVHBR/L 2020K16 | VB.. 1604.. | 25 | 16 | 125 | 269028 2 | 269005 8 | 269013 2 | ||
| 25/16 | eShop | eShop | SVHBR/L 2525M16 | VB.. 1604.. | 32 | 21 | 150 | 269028 2 | 269005 8 | 269013 2 |
GARANT Master Eco SVJB 93° screw-on toolholder for indexable inserts VB.. Highly efficient cooling directly on the cutting edge and additional flank face cooling.
Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master Eco holders No. 319006 − 319136 or No. 317900 for shank length < 125 mm. Optional connection possibility via hose connection (G 1/8 inch) No. 269207 and 269208.
DIN ISO 5610 Standard
L L1 26 1122 Positioning within the scale ensures precise coolant transfer. L4 50°
| Shank / insert size | 26 1122 | 26 1123 | ISO code | suitable | L | L | L | Set of insert | Shim | Shim screw | |
| toolholder | indexable insert | 4 | 1 | screws |
GARANT Master Eco screw-on toolholder short
| mm | right-hand | left-hand | mm | mm | mm | |||||||
| 20/11 | eShop | eShop | SVJBR/L 2020X11 | VB.. 1103.. | 25 | 35 | 95 | 269023 1 | – | – | ||
| 20/16 | eShop | eShop | SVJBR/L 2020H16 | VB.. 1604.. | 25 | 40 | 100 | 269023 3 | 259033 5 | 269013 7 | ||
| 25/16 | eShop | eShop | SVJBR/L 2525X16 | VB.. 1604.. | 32 | 40 | 110 | 269023 3 | 259033 5 | 269013 7 |
SVJB 93° screw-on toolholder for indexable inserts VB..
26
DIN ISO 5610 Standard L L1 L4 50° 26 1108
| Shank / insert size | 26 1108 | 26 1109 | ISO code | suitable | L | L | L | Set of insert | Shim | Shim screw | |
| toolholder | indexable insert | 4 | 1 | screws |
Screw-on toolholder
| 12/11 | eShop | eShop | SVJBR/L 1212F11 | VB.. 1103.. | 16 | 21.5 | 80 | 269028 22 | – | – | ||
| 16/11 | eShop | eShop | SVJBR/L 1616H11 | VB.. 1103.. | 20 | 21.5 | 100 | 269028 22 | – | – | ||
| 20/11 | eShop | eShop | SVJBR/L 2020K11 | VB.. 1103.. | 25 | 23 | 125 | 269028 22 | – | – | ||
| 20/16 | eShop | eShop | SVJBR/L 2020K16 | VB.. 1604.. | 25 | 30 | 125 | 269028 2 | 269005 8 | 269013 2 | ||
| 25/16 | eShop | eShop | SVJBR/L 2525M16 | VB.. 1604.. | 32 | 33 | 150 | 269028 2 | 269005 8 | 269013 2 |
