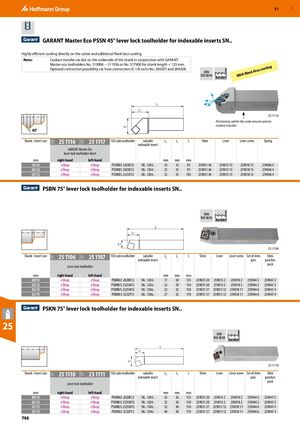

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 746

GBP 57 GARANT Master Eco PSSN 45° lever lock toolholder for indexable inserts SN.. Highly efficient cooling directly on the cutter and additional flank face cooling. Note: Coolant transfer via slot on the underside of the shank in conjunction with GARANT Master eco toolholders No. 319006 − 311936 or No. 317900 for shank length < 125 mm. g Optional connection possibility via hose connection (G 1/8 inch) No. 269207 and 269208. oolin face c DIN ISO 5610 Standard i t h flank W L L1 25 1116 Positioning within the scale ensures precise L4 coolant transfer. 42° Shank / insert size 25 1116 25 1117 ISO code toolholder suitable L4 L1 L Shim Lever Lever screw Spring 21U 21U indexable insert GARANT Master Eco lever lock toolholder short mm right-hand left-hand ​ ​ mm mm mm ​ ​ ​ ​ 16/12 eShop eShop PSSNR/L 1620X12 SN.. 1204.. 25 35 85 259031 46 259015 15 259018 15 259046 4 20/12 eShop eShop PSSNR/L 2020X12 SN.. 1204.. 25 35 95 259031 46 259015 15 259018 15 259046 4 25/12 eShop eShop PSSNR/L 2525X12 SN.. 1204.. 32 35 105 259031 46 259015 15 259018 15 259046 4 ​ PSBN 75° lever lock toolholder for indexable inserts SN.. DIN ISO 5610 Standard L L1 L4 25 1106 Shank / insert size 25 1106 25 1107 ISO code toolholder suitable L4 L1 L Shim Lever Lever screw Set of shim Shim 21T 21T indexable insert pins punches pack Lever lock toolholder mm right-hand left-hand ​ ​ mm mm mm ​ ​ ​ ​ ​ 20/12 eShop eShop PSBNR/L 2020K12 SN.. 1204.. 17 28 125 259031 20 259015 2 259018 2 259044 2 259047 2 25/12 eShop eShop PSBNR/L 2525M12 SN.. 1204.. 22 29 150 259031 20 259015 2 259018 2 259044 2 259047 2 25/15 eShop eShop PSBNR/L 2525M15 SN.. 1506.. 22 32 150 259031 37 259015 12 259018 11 259044 6 259047 4 32/15 eShop eShop PSBNR/L 3232P15 SN.. 1506.. 27 32 170 259031 37 259015 12 259018 11 259044 6 259047 4 ​ PSKN 75° lever lock toolholder for indexable inserts SN.. 25 DIN ISO 5610 Standard L L1 L4 25 1110 Shank / insert size 25 1110 25 1111 ISO code toolholder suitable L4 L1 L Shim Lever Lever screw Set of shim Shim 21T 21T indexable insert pins punches pack Lever lock toolholder mm right-hand left-hand ​ ​ mm mm mm ​ ​ ​ ​ ​ 20/12 eShop eShop PSKNR/L 2020K12 SN.. 1204.. 25 26 125 259031 20 259015 2 259018 2 259044 2 259047 2 25/12 eShop eShop PSKNR/L 2525M12 SN.. 1204.. 32 26 150 259031 20 259015 2 259018 2 259044 2 259047 2 25/15 eShop eShop PSKNR/L 2525M15 SN.. 1506.. 32 30 150 259031 37 259015 12 259018 11 259044 6 259047 4 32/15 eShop eShop PSKNR/L 3232P15 SN.. 1506.. 40 30 170 259031 37 259015 12 259018 11 259044 6 259047 4 746
