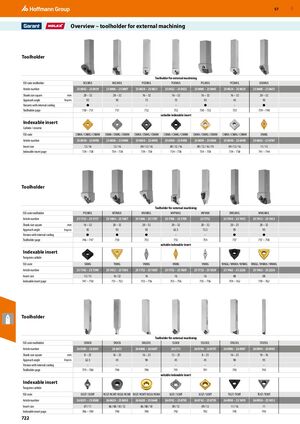

GBP 57 Overview – toolholder for external machining Toolholder Toolholder for external machining ISO code toolholder DCLNR/L MCLNR/L PCBNR/L PCKNR/L PCLNR/L PCSNR/L DDJNR/L Article number 25 0002 – 25 0039 25 0006 – 25 0007 25 0020 – 25 0021 25 0022 – 25 0023 25 0000 – 25 0045 25 0024 – 25 0025 25 0608 – 25 0631 Shank size square mm 20 – 32 20 – 32 16 – 32 16 – 32 16 – 32 16 – 32 20 – 32 Approach angle Degrees 95 95 75 75 95 45 93 Variants with internal cooling ● – – – ● – ● Toolholder page 730 – 731 731 732 732 730 – 732 733 739 – 740 suitable indexable insert Indexable insert Carbide / ceramic ISO code CNMA / CNMG / CNMM CNMA / CNMG / CNMM CNMA / CNMG / CNMM CNMA / CNMG / CNMM CNMA / CNMG / CNMM CNMA / CNMG / CNMM DNMG Article number 25 0058 – 25 0498 25 0058 – 25 0498 25 0050 – 25 0498 25 0050 – 25 0498 25 0050 – 25 0504 25 0050 – 25 0498 25 0652 – 25 0787 Insert size 12 / 16 12 / 16 09 / 12 / 16 09 / 12 / 16 09 / 12 / 16 / 19 09 / 12 / 16 11 / 15 Indexable insert page 734 – 738 734 – 738 734 – 738 734 – 738 734 – 738 734 – 738 741 – 744 Toolholder Toolholder for external machining ISO code toolholder PSSNR/L MTJNR/L MVJNR/L MVPNR/L MVVNN DWLNR/L MWLNR/L Article number 25 1112 – 25 1117 25 1404 – 25 1407 25 1696 – 25 1707 25 1708 – 25 1709 25 1712 25 1914 – 25 1915 25 1912 – 25 1923 Shank size square mm 16 – 32 20 – 32 20 – 32 20 – 32 20 – 32 20 – 25 20 – 32 Approach angle Degrees 45 93 93 62.5 72.5 95 95 Version with internal cooling ● ● ● – – ● ● Toolholder page 746 – 747 750 753 753 754 757 757 – 758 suitable indexable insert Indexable insert Tungsten carbide ISO code SNMG TNMG VNMG VNMG VNMG WNGG / WNMA / WNMG WNGG / WNMA / WNMG Article number 25 1142 – 25 1390 25 1432 – 25 1565 25 1732 – 25 1829 25 1732 – 25 1829 25 1732 – 25 1829 25 1962 – 25 2226 25 1962 – 25 2226 Insert size 12 / 15 16 / 22 16 16 16 08 08 Indexable insert page 747 – 750 751 – 752 755 – 756 755 – 756 755 – 756 759 – 762 759 – 762 Toolholder Toolholder for external machining ISO code toolholder SDNCN SRDCN SRGCR/L SSDCN SSSCR/L STGCR/L STJCR/L Article number 26 0300 – 26 0301 26 0611 26 0606 – 26 0607 26 0711 26 0706 – 26 0707 26 0906 – 26 0907 26 0904 – 26 0905 Shank size square mm 8 – 25 16 – 25 16 – 25 12 – 25 8 – 25 16 – 25 10 – 16 Approach angle Degrees 62.5 45 90 45 45 90 93 Version with internal cooling – – – – – – – Toolholder page 779 – 780 790 790 791 791 793 793 suitable indexable insert Indexable insert Tungsten carbide ISO code DCGT / DCMT RCGT / RCMT / RCGX / RCMX RCGT / RCMT / RCGX / RCMX SCGT / SCMT SCGT / SCMT TCGT / TCMT TCGT / TCMT Article number 26 0351 – 25 0508 26 0620 – 25 0650 26 0620 – 25 0640 26 0742 – 25 0795 26 0742 – 25 0795 26 0950 – 25 1019 26 0950 – 25 1012 Insert size 07 / 11 06 / 08 / 10 / 12 06 / 08 / 10 09 / 12 09 / 12 11 / 16 11 Indexable insert page 786 – 789 790 790 792 792 795 795 722
