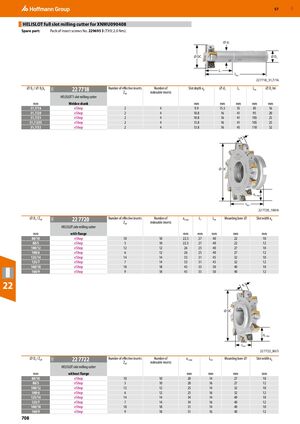

GBP 57 HELISLOT full slot milling cutter for XNMU090408 ​ Spare part: Pack of insert screws No. 229695 3 (TX9; 2.0 Nm). ⌀ d1 ⌀ DC ⌀ Ds L1 Ltot 22 7718_31,7/16 ⌀ DC / ⌀ DSh6 22 7718 Number of effective inserts Number of Slot depth ap ⌀ d1 L1 Ltot ⌀ Ds h6 19D Zeff indexable inserts HELISLOT T-slot milling cutter mm Weldon shank ​ ​ mm mm mm mm mm 31,7/16 eShop 2 4 9.9 15.5 35 85 16 31,7/20 eShop 2 4 10.8 16 41 95 20 31,7/25 eShop 2 4 10.8 16 41 105 25 31,7/25S eShop 2 4 13.8 16 41 105 25 31,7/32 eShop 2 4 13.8 16 45 110 32 ap ⌀ DC ae max Ltot 22 7720_100/6 ⌀ DC / Zeff 22 7720 Number of effective inserts Number of ae max L1 Ltot Mounting bore ⌀ Slot width ap 19D Zeff indexable inserts HELISLOT side milling cutter mm with flange ​ ​ mm mm mm mm mm 80/10 eShop 10 10 22.5 27 40 22 10 80/5 eShop 5 10 22.5 27 40 22 12 100/12 eShop 12 12 26 25 40 27 10 100/6 eShop 6 12 26 25 40 27 12 125/14 eShop 14 14 33 31 45 32 10 125/7 eShop 7 14 33 31 45 32 12 160/18 eShop 18 18 45 35 50 40 10 160/9 eShop 9 18 45 35 50 40 12 22 ap ⌀ DC ae max Ltot 22 7722_80/5 ⌀ DC / Zeff 22 7722 Number of effective inserts Number of ae max Ltot Mounting bore ⌀ Slot width ap 19D Zeff indexable inserts HELISLOT side milling cutter mm without flange ​ ​ mm mm mm mm 80/10 eShop 10 10 20 14 27 10 80/5 eShop 5 10 20 16 27 12 100/12 eShop 12 12 25 14 32 10 100/6 eShop 6 12 25 16 32 12 125/14 eShop 14 14 34 14 40 10 125/7 eShop 7 14 34 16 40 12 160/18 eShop 18 18 51 14 40 10 160/9 eShop 9 18 51 16 40 12 708
