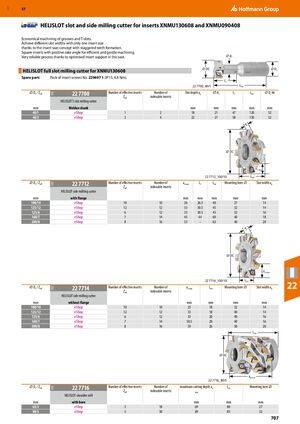

GBP 57 ​ HELISLOT slot and side milling cutter for inserts XNMU130608 and XNMU090408 Economical machining of grooves and T-slots. Achieve different slot widths with only one insert size thanks to the insert seat concept with staggered teeth formation. Square inserts with positive rake angle for efficient and gentle machining. Very reliable process thanks to optimised insert support in the seat. ⌀ d1 ⌀ DC ⌀ Ds HELISLOT full slot milling cutter for XNMU130608 ​ Spare part: Pack of insert screws No. 229697 1 (IP15; 4.8 Nm). L1 22 7700_40/1 Ltot ⌀ DC / Zeff 22 7700 Number of effective inserts Number of Slot depth ap ⌀ d1 L1 Ltot ⌀ Ds h6 19D Zeff indexable inserts HELISLOT T-slot milling cutter mm Weldon shank ​ ​ mm mm mm mm mm 40/1 eShop 1 2 18 21 47 120 32 48/2 eShop 2 4 22 27 58 130 32 ap ⌀ DC ae max 22 7712_100/10 Ltot ⌀ DC / Zeff 22 7712 Number of effective inserts Number of ae max L1 Ltot Mounting bore ⌀ Slot width ap 19D Zeff indexable inserts HELISLOT side millling cutter mm with flange ​ ​ mm mm mm mm mm 100/10 eShop 10 10 26 26.5 40 27 14 125/12 eShop 12 12 33 30.5 45 32 14 125/6 eShop 6 12 33 30.5 45 32 16 160/7 eShop 7 14 45 44 60 40 18 200/8 eShop 8 16 53 – 63 40 20 ap ⌀ DC ae max 22 7714_100/10 Ltot ⌀ DC / Zeff 22 7714 Number of effective inserts Number of ae max Ltot Mounting bore ⌀ Slot width ap 22 19D Zeff indexable inserts HELISLOT side milling cutter mm without flange ​ ​ mm mm mm mm 100/10 eShop 10 10 23 18 32 14 125/12 eShop 12 12 33 18 40 14 125/6 eShop 6 12 33 20 40 16 160/7 eShop 7 14 50.5 20 40 16 200/8 eShop 8 16 59 26 50 20 Ltot ⌀ DC ap max 22 7716_80/5 ⌀ DC / Zeff 22 7716 Number of effective inserts Number of maximum cutting depth ap Ltot Mounting bore ⌀ 19D Zeff indexable inserts max HELISLOT shoulder mill mm with bore ​ ​ mm mm mm 63/3 eShop 3 18 69 80 27 80/5 eShop 5 30 69 85 32 707
