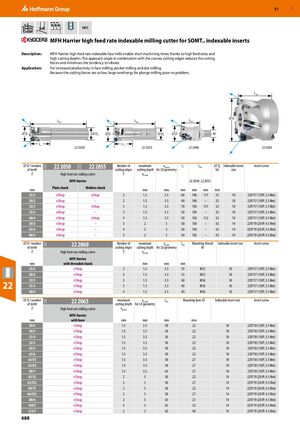

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 688

GBP 57 HPC MFH Harrier high feed rate indexable milling cutter for SOMT.. indexable inserts Description: MFH Harrier high feed rate indexable face mills enable short machining times thanks to high feed rates and high cutting depths. The approach angle in combination with the convex cutting edges reduces the cutting forces and minimises the tendency to vibrate. Application: For increased productivity in face milling, pocket milling and slot milling. Because the cutting forces are so low, large overhangs for plunge milling pose no problem. Ltot ⌀D Ltot Ltot Ltot ⌀D ⌀ DS ⌀D ⌀ DS ⌀D M L1 L1 22 2050 22 2055 22 2060 22 2065 ⌀ D / number 22 2050 22 2055 Number of maximum ap max L1 Ltot ⌀ Ds Indexable insert Insert screw 25O 25O of teeth cutting edges cutting depth for LD geometry h6 size Z High feed rate milling cutter Z ap max MFH Harrier ​ 22 2050 22 2055 ​ ​ ​ Plain shank Weldon shank mm ​ mm mm mm mm mm mm ​ ​ 25/2 eShop eShop 2 1.5 3.5 60 140 117 25 10 229717 (15IP; 3.5 Nm) 28/2 eShop – 2 1.5 3.5 40 140 – 25 10 229717 (15IP; 3.5 Nm) 32/3 eShop eShop 3 1.5 3.5 70 150 131 32 10 229717 (15IP; 3.5 Nm) 35/3 eShop – 3 1.5 3.5 50 150 – 32 10 229717 (15IP; 3.5 Nm) 40/4 eShop eShop 4 1.5 3.5 50 150 112 32 10 229717 (15IP; 3.5 Nm) 50/3 eShop – 3 2 5 50 150 – 42 14 229719 (20 IP; 4.5 Nm) 63/4 eShop – 4 2 5 50 150 – 42 14 229719 (20 IP; 4.5 Nm) 80/5 eShop – 5 2 5 50 150 – 42 14 229719 (20 IP; 4.5 Nm) ⌀ D / number 22 2060 Number of maximum ap max Ltot Mounting thread Indexable insert size Insert screw 25O of teeth cutting edges cutting depth for LD geometry M Z High feed rate milling cutter Z ap max MFH Harrier mm with threaded shank ​ mm mm mm ​ ​ ​ 25/2 eShop 2 1.5 3.5 35 M12 10 229717 (15IP; 3.5 Nm) 28/2 eShop 2 1.5 3.5 35 M12 10 229717 (15IP; 3.5 Nm) 32/3 eShop 3 1.5 3.5 40 M16 10 229717 (15IP; 3.5 Nm) 22 35/3 40/4 eShop eShop 3 4 1.5 1.5 3.5 3.5 40 40 M16 M16 10 10 229717 (15IP; 3.5 Nm) 229717 (15IP; 3.5 Nm) ⌀ D / number 22 2065 maximum ap max Ltot Mounting bore ⌀ Indexable insert size Insert screw 25O of teeth cutting depth for LD geometry Z High feed rate milling cutter ap max MFH Harrier mm with bore mm mm mm mm ​ ​ 50/4 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 50/5 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 52/4 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 52/5 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 63/5 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 63/6 eShop 1.5 3.5 50 22 10 229718 (15IP; 3.5 Nm) 63/5S eShop 1.5 3.5 50 27 10 229718 (15IP; 3.5 Nm) 63/6S eShop 1.5 3.5 50 27 10 229718 (15IP; 3.5 Nm) 80/7 eShop 1.5 3.5 63 27 10 229718 (15IP; 3.5 Nm) 63/5L eShop 2 5 50 22 14 229719 (20 IP; 4.5 Nm) 63/5SL eShop 2 5 50 27 14 229719 (20 IP; 4.5 Nm) 66/5L eShop 2 5 50 22 14 229719 (20 IP; 4.5 Nm) 66/5SL eShop 2 5 50 27 14 229719 (20 IP; 4.5 Nm) 80/6 eShop 2 5 63 27 14 229719 (20 IP; 4.5 Nm) 100/7 eShop 2 5 63 32 14 229719 (20 IP; 4.5 Nm) 125/7 eShop 2 5 63 40 14 229719 (20 IP; 4.5 Nm) 688
