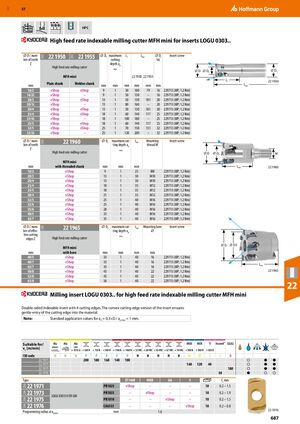

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 687

GBP 57 HPC High feed rate indexable milling cutter MFH mini for inserts LOGU 0303.. ⌀ D / num- 22 1950 22 1955 ⌀ D3 maximum L1 Ltot ⌀ Ds Insert screw 25O 25O ber of teeth cutting h6 Z depth ap High feed rate milling cutter max​ ⌀ D ⌀ D3 ⌀ Ds MFH mini ​ ​ 22 1950 22 1955 ​ ​ L1 22 1950 Plain shank Weldon shank Ltot mm mm mm mm mm mm mm ​ 16/2 eShop eShop 9 1 30 100 79 16 229713 (8IP; 1.2 Nm) 16/2L eShop – 9 1 50 150 – 16 229713 (8IP; 1.2 Nm) 20/3 eShop eShop 13 1 50 130 101 20 229713 (8IP; 1.2 Nm) 20/3L eShop – 13 1 80 160 – 20 229713 (8IP; 1.2 Nm) 20/4 eShop eShop 13 1 50 130 101 20 229713 (8IP; 1.2 Nm) 25/4 eShop eShop 18 1 60 140 117 25 229713 (8IP; 1.2 Nm) 25/4L eShop – 18 1 100 180 – 25 229713 (8IP; 1.2 Nm) 25/5 eShop eShop 18 1 60 140 117 25 229713 (8IP; 1.2 Nm) 32/5 eShop eShop 25 1 70 150 131 32 229713 (8IP; 1.2 Nm) 32/5L eShop – 25 1 120 200 – 32 229713 (8IP; 1.2 Nm) ⌀ D / num- 22 1960 ⌀ D3 maximum cut- Ltot Mounting Insert screw 25O ber of teeth ting depth ap thread M Z max High feed rate milling cutter ⌀D ⌀ D3 M MFH mini mm with threaded shank mm mm mm ​ ​ Ltot 22 1960 16/2 eShop 9 1 25 M8 229713 (8IP; 1.2 Nm) 20/3 eShop 13 1 30 M10 229713 (8IP; 1.2 Nm) 20/4 eShop 13 1 30 M10 229713 (8IP; 1.2 Nm) 25/4 eShop 18 1 35 M12 229713 (8IP; 1.2 Nm) 25/5 eShop 18 1 35 M12 229713 (8IP; 1.2 Nm) 28/4 eShop 21 1 35 M12 229713 (8IP; 1.2 Nm) 32/5 eShop 25 1 40 M16 229713 (8IP; 1.2 Nm) 32/6 eShop 25 1 40 M16 229713 (8IP; 1.2 Nm) 35/6 eShop 28 1 40 M16 229713 (8IP; 1.2 Nm) 40/5 eShop 33 1 40 M16 229713 (8IP; 1.2 Nm) 42/7 eShop 35 1 40 M16 229713 (8IP; 1.2 Nm) ⌀ D / num- 22 1965 ⌀ D3 maximum cut- Ltot Mounting bore Insert screw 25O ber of effec- ting depth ap ⌀ tive cutting max edges Z High feed rate milling cutter ⌀ D ⌀ D3 MFH mini ​ mm with bore mm mm mm mm ​ 40/5 eShop 33 1 40 16 229713 (8IP; 1.2 Nm) 40/7 eShop 33 1 40 16 229713 (8IP; 1.2 Nm) Ltot 42/7 eShop 35 1 40 16 229713 (8IP; 1.2 Nm) 50/8 eShop 43 1 40 22 229713 (8IP; 1.2 Nm) 22 1965 52/8 eShop 45 1 40 22 229713 (8IP; 1.2 Nm) 63/8 eShop 56 1 40 22 229713 (8IP; 1.2 Nm) 22 ​ Milling insert LOGU 0303.. for high feed rate indexable milling cutter MFH mini Double-sided indexable insert with 4 cutting edges. The convex cutting edge version of the insert ensures gentle entry of the cutting edge into the material. Note: Standard application values for ae = 0.3×D / ap max = 1 mm. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S S K ​ ​ ​ ​ ​ 22 1971 200 180 160 140 100 ○ ● ● 22 1973 160 120 40 ○ ● ● 22 1975 180 ○ ● ● 22 1976 30 ● ○ ○ Type ST1400 INOX GG S fz mm 22 1971 PR1825 eShop – – – 10 0.2 – 1.5 25A 25A 25A 25A 22 1973 LOGU 030310 ER-GM PR1835 – eShop – – 10 0.2 – 1.9 22 1975 PR1810 – – eShop – 10 0.2 – 1.5 22 1976 CA6535 – – – eShop 10 0.2 – 0.8 22 1976 Programming radius at ap max mm 1.6 ​ ​ 687
