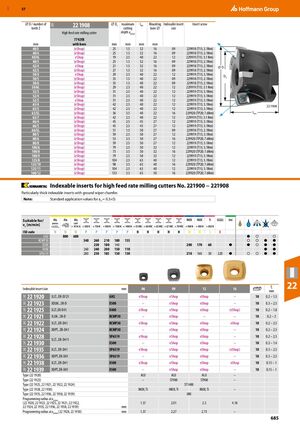

GBP 57 ⌀ D / number of 22 1908 ⌀ D3 maximum Ltot Mounting Indexable insert Insert screw 28R teeth Z cutting bore ⌀ size High feed rate milling cutter depth ap max 7792VX mm with bore mm mm mm mm ​ ​ 40/3 (eShop) 25 1.5 32 16 09 229918 (T15; 2.1Nm) 40/4 (eShop) 25 1.5 32 16 09 229918 (T15; 2.1Nm) 40/4L eShop 19 2.5 40 22 12 229919 (T15; 3.1 Nm) 40/5 (eShop) 25 1.5 32 16 09 229918 (T15; 2.1Nm) 42/4 eShop 21 1.5 32 16 09 229918 (T15; 2.1Nm) ⌀D 42/5 (eShop) 27 1.5 32 16 09 229918 (T15; 2.1Nm) 50/4 eShop 29 2.5 40 22 12 229919 (T15; 3.1Nm) D3 50/5 (eShop) 35 1.5 40 22 09 229918 (T15; 2.1Nm) 50/6 (eShop) 35 1.5 40 22 09 229918 (T15; 2.1Nm) 50/6L (eShop) 29 2.5 40 22 12 229919 (T15; 3.1 Nm) 52/3 (eShop) 31 2.5 40 22 12 229919 (T15; 3.1Nm) 52/4 (eShop) 31 2.5 40 22 12 229919 (T15; 3.1Nm) 52/5 eShop 31 2.5 40 22 12 229919 (T15; 3.1Nm) 63/4 (eShop) 42 2.5 40 22 12 229919 (T15; 3.1Nm) ​ 22 1908 63/5 (eShop) 42 2.5 40 22 12 229919 (T15; 3.1Nm) 63/5L (eShop) 36 3.5 40 22 16 229920 (TP20; 7.6Nm) Ltot 63/7 (eShop) 42 2.5 40 22 12 229919 (T15; 3.1 Nm) 66/4 (eShop) 45 2.5 45 27 12 229919 (T15; 3.1Nm) 66/5 (eShop) 45 2.5 45 27 12 229919 (T15; 3.1Nm) 66/5L (eShop) 51 1.5 50 27 09 229918 (T15; 2.1Nm) 80/5 (eShop) 59 2.5 50 27 12 229919 (T15; 3.1Nm) 80/6 (eShop) 53 3.5 50 27 16 229920 (TP20; 7.6Nm) 80/8 (eShop) 59 2.5 50 27 12 229919 (T15; 3.1Nm) 100/6 (eShop) 79 2.5 50 32 12 229919 (T15; 3.1Nm) 100/8 (eShop) 73 3.5 50 32 16 229920 (TP20; 7.6Nm) 100/9 (eShop) 79 2.5 50 32 12 229919 (T15; 3.1Nm) 125/8 (eShop) 104 2.5 63 40 12 229919 (T15; 3.1Nm) 125/10 (eShop) 98 3.5 63 40 16 229920 (TP20; 7.6Nm) 125/11 (eShop) 104 2.5 63 40 12 229919 (T15; 3.1Nm) 160/12 (eShop) 133 3.5 63 50 16 229920 (TP20; 7.6Nm) ​ Indexable inserts for high feed rate milling cutters No. 221900 − 221908 Particularly thick indexable inserts with ground wiper chamfer. Note: Standard application values for ae = 0.3×D. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ GH2 800 600 ● ○ ○ KCMP30 340 260 210 180 155 ○ ○ ● ● X500 230 180 140 200 170 60 ● ● ○ ● ● X400 260 240 200 150 110 ● ● SP6519 280 250 185 150 130 210 160 50 220 ● ○ ○ ● ● Indexable insert size mm 06 09 12 16 mm fz 22 22 1920 X.LT...ER-D721 GH2 eShop eShop eShop – 10 0.2 – 1.5 28F 28F 28E 28E 28F 28E 28E 28E 28E 28F 28F 28E 22 1923 XDLW...SR-D X500 – eShop eShop – 10 0.3 – 2.5 22 1925 X.LT..ER-D41 X400 eShop eShop eShop (eShop) 10 0.2 – 1.8 22 1921 X.LW...SR-D KCMP30 – eShop – – 10 0.2 – 3 22 1922 X.LT...ER-D41 KCMP30 eShop eShop eShop eShop 10 0.2 – 2.5 22 1924 XDPT...ER-D41 KCMP30 – eShop eShop – 10 0.2 – 2.5 22 1928 X.LT...ER-D411 SP6519 eShop eShop eShop – 10 0.2 – 2.5 22 1930 X500 – eShop eShop – 10 0.3 – 1.4 22 1935 X.LT...ER-D41 SP6519 eShop eShop eShop (eShop) 10 0.3 – 2.5 22 1936 XDPT..ER-D41 SP6519 – eShop eShop – 10 0.3 – 2.5 22 1938 X.LT...ER-D41 X500 eShop eShop eShop eShop 10 0.15 – 1 XDPT..ER-D41 22 1939 X500 – eShop eShop – 10 0.15 – 1 Type (22 1920) ALU ALU ALU – ​ ​ Type (22 1923) – ST900 ST900 – ​ ​ Type (22 1925, 22 1921, 22 1922, 22 1924) ST1400 ​ ​ Type (22 1928, 22 1930) INOX; Ti INOX; Ti INOX; Ti – ​ ​ Type (22 1935, 22 1936, 22 1938, 22 1939) UNI ​ ​ Programming radius at ap max (22 1920, 22 1923, 22 1925, 22 1921, 22 1922, 1.37 2.01 2.5 4.18 ​ ​ 22 1924, 22 1935, 22 1936, 22 1938, 22 1939) mm Programming radius at ap max (22 1928, 22 1930) mm 1.37 2.27 2.73 – ​ ​ 685
