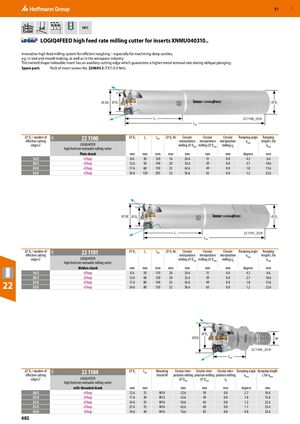

GBP 57 HPC LOGIQ4FEED high feed rate milling cutter for inserts XNMU040310.. Innovative high feed milling system for efficient roughing – especially for machining deep cavities, e.g. in tool and mould making, as well as in the aerospace industry. The twisted shape indexable insert has an auxiliary cutting edge which guarantees a higher metal removal rate during oblique plunging. Spare part: Pack of insert screws No. 229695 2 (TX7; 0.9 Nm). ⌀ DC ⌀ D3 ⌀ Ds L1 22 1100_25/4 Ltot ⌀ DC / number of 22 1100 ⌀ D3 L1 Ltot ⌀ Ds h6 Circular Circular Circular Ramping angle Ramping 19D effective cutting interpolation interpolation interpolation αmax length L for edges Z LOGIQ4FEED milling ⌀ Dmin milling ⌀ Dmax milling ap αmax high feed rate indexable milling cutter Plain shank mm mm mm mm mm mm mm degrees mm 16/2 eShop 8.6 30 120 16 24.6 31 0.8 4.3 6.6 20/3 eShop 12.6 50 140 20 32.6 39 0.8 2.7 10.6 25/4 eShop 17.6 60 150 25 42.6 49 0.8 1.8 15.6 32/5 eShop 24.6 120 205 32 56.6 63 0.8 1.2 22.6 ⌀ DC ⌀ D3 ⌀ Ds L1 22 1101_25/4 Ltot ⌀ DC / number of 22 1101 ⌀ D3 L1 Ltot ⌀ Ds h6 Circular Circular Circular Ramping angle Ramping 19D effective cutting interpolation interpolation interpolation αmax length L for edges Z LOGIQ4FEED milling ⌀ Dmin milling ⌀ Dmax milling ap αmax high feed rate indexable milling cutter Weldon shank mm mm mm mm mm mm mm degrees mm 16/2 eShop 8.6 50 110 20 24.6 31 0.8 4.3 6.6 20/3 eShop 12.6 60 120 20 32.6 39 0.8 2.7 10.6 22 25/4 eShop 17.6 80 140 25 42.6 49 0.8 1.8 15.6 32/5 eShop 24.6 80 150 32 56.6 63 0.8 1.2 22.6 ⌀ D3 ⌀ DC M 22 1104 _25/4 Ltot ⌀ DC / number of 22 1104 ⌀ D3 Ltot Mounting Circular inter- Circular inter- Circular inter- Ramping angle Ramping length 19D effective cutting thread M polation milling polation milling polation milling αmax L for αmax edges Z LOGIQ4FEED ⌀ Dmin ⌀ Dmax ap high feed rate indexable milling cutter with threaded shank mm mm ​ mm mm mm degrees mm 20/3 eShop 12.6 25 M10 32.6 39 0.8 2.7 10.6 25/4 eShop 17.6 30 M12 42.6 49 0.8 1.8 15.6 32/5 eShop 24.6 35 M16 56.6 63 0.8 1.2 22.6 35/5 eShop 27.6 35 M16 62.6 69 0.8 1.1 25.6 42/6 eShop 34.6 40 M16 76.6 83 0.8 0.8 32.6 682
