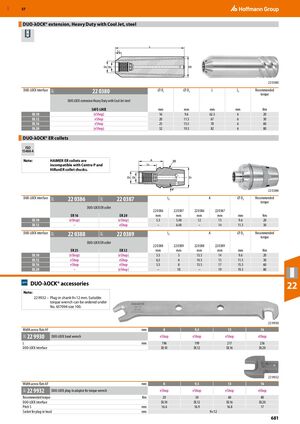

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 681

GBP 57 DUO-λOCK® extension, Heavy Duty with Cool Jet, steel ​ ​ 22 0380 DUO-LOCK interface 22 0380 ⌀ Ds ⌀ D2 L L2 Recommended 26Y torque DUO LOCK extension Heavy Duty with Cool Jet steel SAFE-LOCK mm mm mm mm Nm DL10 (eShop) 16 9.6 62.5 6 20 DL12 eShop 20 11.5 67 6 30 DL16 eShop 25 15.5 78 6 60 DL20 (eShop) 32 19.3 82 6 80 DUO-λOCK® ER collets ​ ISO 15488-A Note: HAIMER ER collets are incompatible with Centro P and HiRunER collet chucks. ​ 22 0386 DUO-LOCK interface 22 0386 22 0387 L2 A ⌀ D2 Recommended 26Y 26Y torque DUO-LOCK ER collet 22 0386 22 0387 22 0386 22 0387 ​ ​ ER 16 ER 20 mm mm mm mm mm Nm DL10 (eShop) (eShop) 5.3 5.48 12 13 9.6 20 DL12 – eShop – 6.48 – 14 11.5 30 DUO-LOCK interface 22 0388 22 0389 L2 A ⌀ D2 Recommended 26Y 26Y torque DUO-LOCK ER collet 22 0388 22 0389 22 0388 22 0389 ​ ​ ER 25 ER 32 mm mm mm mm mm Nm DL10 (eShop) (eShop) 5.5 5 13.5 14 9.6 20 DL12 eShop eShop 6,5 6 14.5 15 11.5 30 DL16 eShop eShop 5.5 8 13.5 17 15.5 60 DL20 – (eShop) – 10 – 19 19.3 80 ​ Note: DUO-λOCK® accessories 22 22 9932 – Plug-in shank 9×12 mm. Suitable torque wrench can be ordered under No. 657094 size 100. ​ 22 9930 Width across flats AF mm 8 9,5 13 16 22 9930 DUO-LOCK hand wrench eShop eShop eShop eShop 26Y L mm 196 199 217 236 DUO-LOCK interface DL10 DL12 DL16 DL20 ​ 22 9932 ‌Width across flats AF mm 8 9,5 13 16 22 9932 DUO-LOCK plug-in adaptor for torque wrench eShop eShop eShop eShop 26Y Recommended torque Nm 20 30 60 80 DUO-LOCK interface DL10 DL12 DL16 DL20 Pitch S mm 16.6 16.9 16.8 17 Socket for plug-in head mm 9×12 681
